Home > Products > NES SWITCHING POWER SUPPLY > 75W 12V 6A Switching Power Supply with Short Circuit Protection

75W 12V 6A Switching Power Supply with Short Circuit Protection

Basic Info

Model No.:  DR-75-12

Product Description

  • Model NO.: DR-75-12
  • Warranty: 2 Years
  • Input Voltage: 110-220V
  • Starting Mode: Self-excited Switching Power Supply
  • Power Supplying System: Terminal Power Distribution Equipment
  • Modulation System: PWM
  • Brand: Waw
  • Transport Package: Carton
  • Origin: China
  • Output Type: Single
  • Output Power: 51 - 100W
  • Connection Mode: Series Switching Power Supply
  • Voltage Regulating Mode: Width Modulation Type
  • Energy Transmission: One-way Transmission
  • Certification: CE, RoHS
  • Trademark: waw
  • Specification: 55*125*100MM
  • HS Code: 8504401400

SMPS 75W 12V 6A switching power supply with short circuit protection



Product Description

Features



1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY

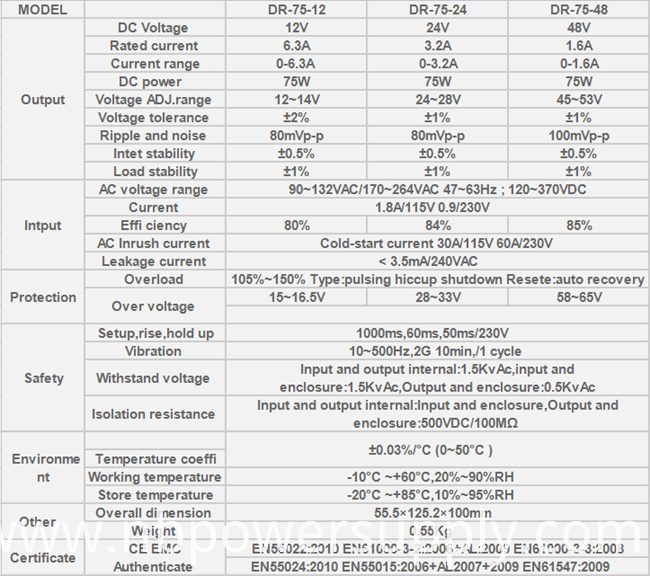

Specifications

75W 12V 6A Switching Power Supply with Short Circuit Protection
75W 12V 6A Switching Power Supply with Short Circuit Protection
75W 12V 6A Switching Power Supply with Short Circuit Protection
















Contact us if you need more details on Power Supply. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Switching Power Supply、LED Power Supply. If these products fail to match your need, please contact us and we would like to provide relevant information.
