120W 12V 10A Switching Power Supply with Short Circuit Protection

Basic Info

Model No.:  DR-120-12

Product Description

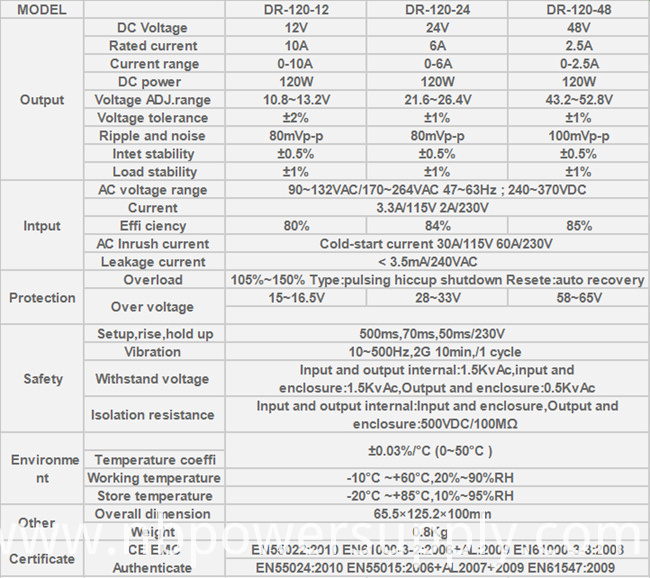

  • Model NO.: DR-120-12
  • Warranty: 2 Years
  • Input Voltage: 110-220V
  • Starting Mode: Self-excited Switching Power Supply
  • Power Supplying System: Terminal Power Distribution Equipment
  • Modulation System: PWM
  • Brand: Waw
  • Transport Package: Carton
  • Origin: China
  • Output Type: Single
  • Output Power: 101 - 200W
  • Connection Mode: Series Switching Power Supply
  • Voltage Regulating Mode: Width Modulation Type
  • Energy Transmission: One-way Transmission
  • Certification: CE, RoHS
  • Trademark: waw
  • Specification: 65*125*100MM
  • HS Code: 8504401400

SMPS 120W 12V 10A switching power supply with short circuit protection


Product Description



1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit



120W 12V 10A Switching Power Supply with Short Circuit Protection
120W 12V 10A Switching Power Supply with Short Circuit Protection
120W 12V 10A Switching Power Supply with Short Circuit Protection
