Home > Products > S SERIES SWITCHING POWER SUPPLY/CCTVSWITCHING POWER SUPPLY > 120W 5V 24A Switching Power Supply with Short Circuit Protection

120W 5V 24A Switching Power Supply with Short Circuit Protection

Basic Info

Model No.:  S-120-5

Product Description

  • Model NO.: S-120-5
  • Warranty: Lifetime Warranty
  • Input Voltage: 110V/220V
  • Starting Mode: Self-excited Switching Power Supply
  • Power Supplying System: Terminal Power Distribution Equipment
  • Modulation System: PWM
  • Brand: Waw
  • Case Material: Metal Aluminium
  • Trademark: waw
  • Specification: 159*97*38MM
  • HS Code: 8504401400
  • Output Type: Single
  • Output Power: 101 - 200W
  • Connection Mode: Series Switching Power Supply
  • Voltage Regulating Mode: Width Modulation Type
  • Energy Transmission: One-way Transmission
  • Certification: CE, RoHS
  • Weight: 0.62kg
  • Packing: White Box,Brown Box
  • Transport Package: Carton
  • Origin: China

SMPS 120W 5V 24A switching power supply with short circuit protection



Product Description

Features



1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY

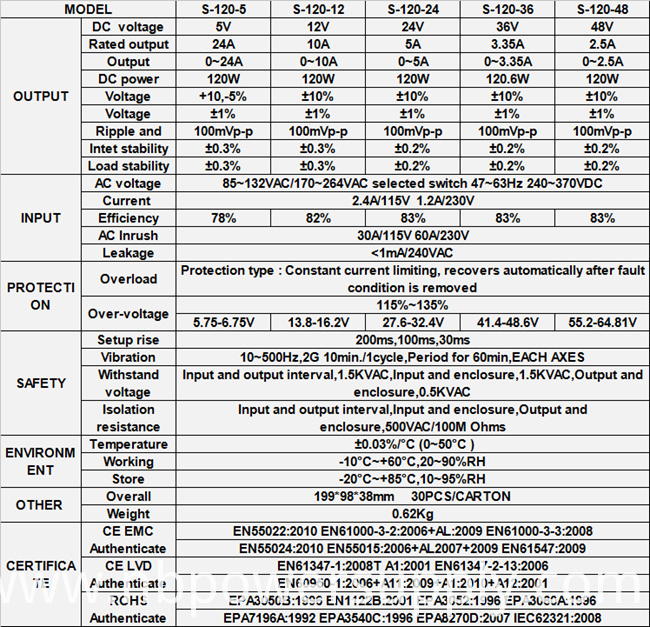

Specifications

120W 5V 24A Switching Power Supply with Short Circuit Protection
120W 5V 24A Switching Power Supply with Short Circuit Protection
120W 5V 24A Switching Power Supply with Short Circuit Protection
















Contact us if you need more details on Power Supply. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Switching Power Supply、LED Power Supply. If these products fail to match your need, please contact us and we would like to provide relevant information.
