Model No.: S-150-12
- Model NO.: S-150-12
- Warranty: Lifetime Warranty
- Input Voltage: 110V/220V
- Starting Mode: Self-excited Switching Power Supply
- Power Supplying System: Terminal Power Distribution Equipment
- Modulation System: PWM
- Brand: Waw
- Transport Package: Carton
- Origin: China
- Output Type: Single
- Output Power: 101 - 200W
- Connection Mode: Series Switching Power Supply
- Voltage Regulating Mode: Width Modulation Type
- Energy Transmission: One-way Transmission
- Certification: CE, RoHS
- Trademark: waw
- Specification: 200*110*50MM
- HS Code: 8504401400

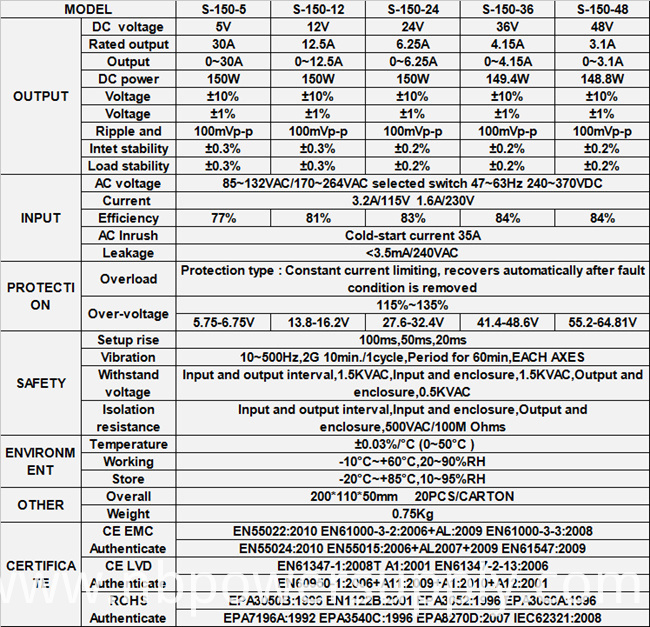

SMPS 150W 12V 12.5A switching power supply with short circuit protection
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
Most peripherals now use switching power supplies for voltage conversion. Although the switching power supply has the characteristics of small size, high working efficiency, and good voltage regulation effect, since the switching power supply is directly connected to the commercial power, the change of the commercial power...
Modularization is the development trend of switching power supplies. Parallel operation is an effective solution for large-capacity power supply products. The N+l redundant power supply system can be designed to achieve capacity expansion. This system is a high-frequency switching power supply (1000A/15V) intelligent module...
On August 24, 2011, Hitachi Kogyo released its portable power supply, Hitachi Portable Power EH 400D [I-BOX JUMBO]. In March 2011, the company introduced a portable power supply "Hitachi Hybrid Power Supply EH 400 [I-BOX]" equipped with a 3Ah capacity lithium ion rechargeable battery for gardening tools and power...
Switching power supply has been widely used in the MTD2002 industrial field for its advantages of high efficiency, energy saving, small size and light weight, and has become an important basic product in the industrial field. At present, most of the major enterprises in China's industrial switching power supply module...
Product Categories : S SERIES SWITCHING POWER SUPPLY/CCTVSWITCHING POWER SUPPLY
