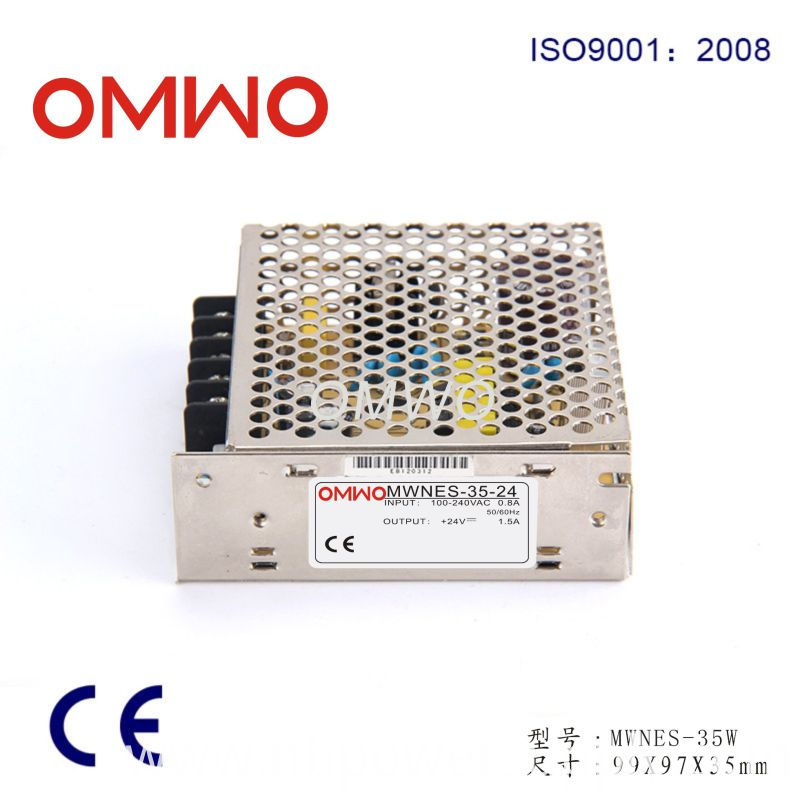

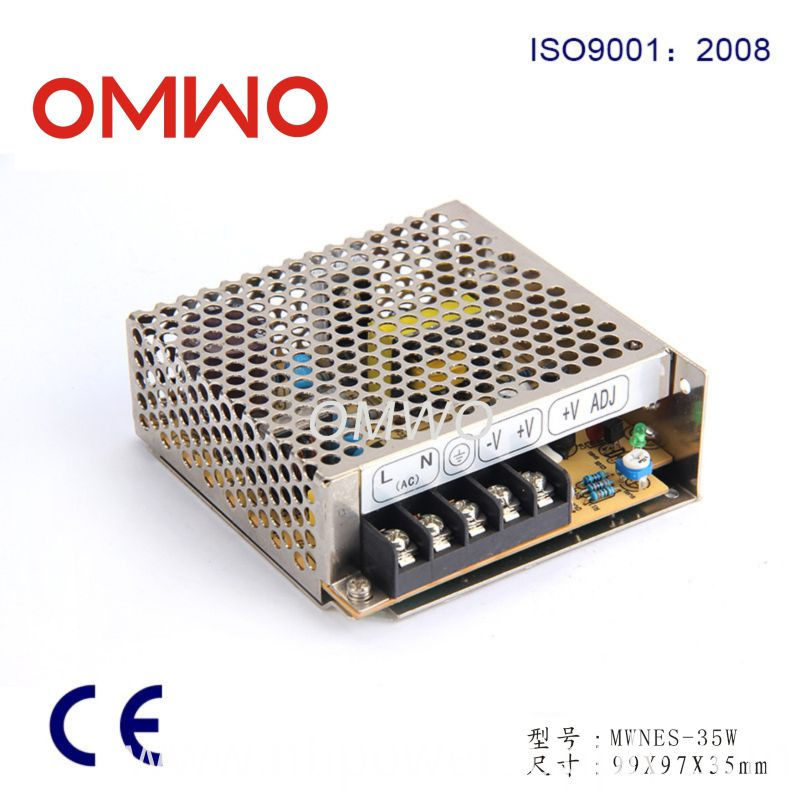

Model No.: MWNES-35-48
1. All using 105°C ling life electrolytic capacitors. 2. Protections: short circuit/ OLP/ OVP 3. Withstand 300VAC surge input for 5 seconds. 4. High operating temperature up to 70°C withstand 5G vibration test. 5. Miniature size, high power density. 6. High efficiency, ling life and high reliability. 7. 100% full load burn-in test. 8. Suitable for critical appllications. 9. 2 years warranty 10. NES-35-5 Industrial Switching AC DC Power Supply
|CURRENT RANGE||0 ~ 10A||0 ~ 4.2A||0 ~ 3.4A||0 ~ 2.2A||0 ~ 1.1A|
|RIPPLE & NOISE (max.) Note.2||80mVp-p||120mVp-p||150mVp-p||200mVp-p||240mVp-p|
|VOLTAGE ADJ. RANGE||4.75 ~ 5.5V||10.8 ~ 13.2V||13.5 ~ 16.5V||21.6 ~ 26.4V||43.2 ~ 52.8V|
| VOLTAGE TOLERANCE |
|SETUP, RISE TIME NOTE.5||500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load|
|HOLD UP TIME (Typ.)||50ms/230VAC 10ms/115VAC at full load|
|VOLTAGE RANGE||85 ~ 264VAC 120 ~ 370VDC|
|FREQUENCY RANGE||47 ~ 63Hz|
|AC CURRENT (Typ.)||1.1A/115VAC 0.65A/230VAC|
|INRUSH CURRENT (Typ.)||COLD START 45A|
|LEAKAGE CURRENT||<2mA / 240VAC|
|OVER LOAD||110 ~ 150% rated output power|
|Protection type : Hiccup mode, recovers automatically after fault condition is removed|
|OVER VOLTAGE||5.75 ~ 6.75V||13.8 ~ 16.2V||17.25 ~ 20.25V||27.6 ~ 32.4V||55.2 ~ 64.8V|
|Protection type : Shut down o/p voltage, re-power on to recover|
|WORKING TEMP.||-20 ~ +60oC (Refer to output load derating curve)|
|WORKING HUMIDITY||20 ~ 90% RH non-condensing|
|STORAGE TEMP., HUMIDITY||-40 ~ +85oC , 10 ~ 95% RH|
|TEMP. COEFFICIENT||0.03%/oC (0 ~ 45oC )|
|VIBRATION||10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes|
SAFETY &EMC(Note 4)
|SAFETY STANDARDS||UL60950-1, CB(IEC60950-1) approved|
|WITHSTAND VOLTAGE||I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC|
|ISOLATION RESISTANCE||I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC|
|EMI CONDUCTION & RADIATION||Compliance to EN55022 (CISPR22) Class B|
|HARMONIC CURRENT||Compliance to EN61000-3-2,-3|
| EMS |
|Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A|
|Others||MTBF||374.2K hrs min. MIL-HDBK-217F (25 )|
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature. |
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.
