Home > Products > Single Output Switching Power Supply > Nes-25W Switching Power Supply with SGS, Ce, RoHS, TUV, Kc, CCC Certification

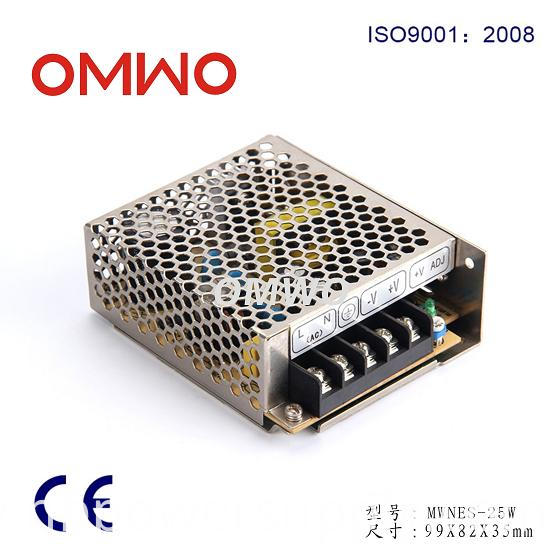

Nes-25W Switching Power Supply with SGS, Ce, RoHS, TUV, Kc, CCC Certification

Productivity:
50000/Month
Place of Origin:
Zhejiang
Supply Ability:
50000/Month
Certificate:
CE, UL, RoHS, ISO, CCC, CB, CSA
  • Mr. Catherine Zhou

Basic Info

Model No.:  NES-25W

Product Description

Model NO.: NES-25W Warranty: >2 Years Input Voltage: 24V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Trademark: OMWO Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Size: 159*98*38mm Transport Package: Standard Export Packing Origin: Zhejiang NES-25W series   Efficient single switching power supply Features:·universal AC input range
        ·Small volume,low weight,high efficiency
        ·Protections:short circuit/over load/over voltage
        ·cooling by free air convection
        ·LED indicator for power on
        ·100% full load burn-in test
        ·2 Years warranty
Model NES-25-5 NES-25-12 NES-25-15 NES-25-24



output
DC voltage 5V 12V 15V 24V
Voltage tolerance ±2% ±1% ±1% ±1%
Rated current 5A 2.1A 1.7A 1.1A
Current range 0~5A 0~2.1A 0~1.7A 0~1.1A
Rated power 25W 25.2W 25.5W 26.4W
Ripple&noise 80mvp-p 120mvp-p 150mvp-p 200mvp-p
DCvoltage ADJ.range -9%~+10% ±10% ±10% ±10%


input
Voltage range 90~264VAC,125~373VDC
frequency 47~63HZ
AC current 0.55A/115VAC,0.35A/230VAC
efficiency 78% 83% 84% 86%
Inrush current Cold start current  25A/115VAC,45A/230VAC
Leakage current < 2mA/240VAC

protection
Over load Rated output power110%~150%  start over load protection
protection type:hiccup mode,auto-recovery after fault condition is removed
over voltage 6.8~8.2V 15.6~17.8V 18.6~20.8V 30.6~33.2V
protection type:hiccup mode,auto-recovery after fault condition is removed
environment Working temp,humidity -20ºC~+60ºC,20%~90%RH
Storagetemp,humidity -40ºC~+85ºC,10%~95%RH non-condensing
Withstand vibration 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety Withstand voltage I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard Safety standard Compliance toUL1012
EMC standard Compliance to EN55022,CLASSA
Others Dimension 84*58*38mm (L*W*H)
Weight/packing 0.2kg/80pcs/17kg/0.024m³/0.87CUFT
note 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
