Wxe-50RS High Quality Switching Power Supply

Productivity:
50000/Month
Place of Origin:
Zhejiang
Supply Ability:
50000/Month
Certificate:
CE, UL, RoHS, ISO, CCC, CB, CSA
  • Mr. Catherine Zhou

Basic Info

Model No.:  WXE-50RS

Product Description

Model NO.: WXE-50RS Warranty: >2 Years Input Voltage: 24V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang 25W NES-25-48 MEAN WELL/
*  Universal AC input/Full range
*  Protections: Short circuit / Overload / Over voltage / Over temperature
*  Cooling by free air convection
*  100% full load burn-in test
*  2 years warranty
1.High Efficiency and good price2.Built-in EMI filter 3.100% full load burn-in test 4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
MODEL NES-25-5 NES-25-12 NES-25-15 NES-25-24 NES-25-48





 OUTPUT
DC VOLTAGE 5V 12V 15V 24V 48V
CURRENT RANGE 0 ~ 5A 0 ~ 2.1A 0 ~ 1.7A 0 ~ 1.1A 0 ~ 0.57A
RATED CURRENT 5A 2.1A 1.7A 1.1A 0.57A
RATED POWER 25W 25.2W 25.5W 26.4W 27.36W
RIPPLE & NOISE (max.)  Note.2 80mVp-p  120mVp-p 150mVp-p 200mVp-p 240mVp-p
VOLTAGE ADJ. RANGE 4.75 ~ 5.5V 10.8 ~ 13.2V  13.5 ~ 16.5V 21.6 ~ 26.4V  43.2 ~ 52.8V
VOLTAGE TOLERANCE
NOTE.3
2.0% 1.0% 1.0% 1.0%   1.0%
LINE REGULATION 1.5% 0.5% 0.5% 0.5% 0.5%
LOAD REGULATION 1.5% 0.5% 0.5% 0.5% 0.5%
SETUP, RISE TIME NOTE.5 500ms, 30ms/230VAC   1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC    10ms/115VAC at full load


INPUT
VOLTAGE RANGE 85 ~ 264VAC   120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 78% 83% 84% 86% 86%
AC CURRENT (Typ.) 0.55A/115VAC     0.35A/230VAC
INRUSH CURRENT (Typ.) COLD START 45A
LEAKAGE CURRENT <2mA / 240VAC

PROTECTION
OVER LOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.75V 13.8 ~ 16.2V  17.25 ~ 20.25V 27.6 ~ 32.4V   55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover


ENVIRONMENT
WORKING TEMP. -20 ~ +60oC (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85oC , 10 ~ 95% RH
TEMP. COEFFICIENT 0.03%/oC (0 ~ 45oC )
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for  60min. each along X, Y, Z axes



SAFETY &EMC(Note 4)
SAFETY STANDARDS UL60950-1, CB(IEC60950-1) approved
WITHSTAND VOLTAGE  I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION Compliance to EN55022 (CISPR22) Class B
HARMONIC CURRENT Compliance to EN61000-3-2,-3
EMS
IMMUNITY
Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, EN61000-6-1, light industry level, criteria A
 Others MTBF 411.47Khrs min. MIL-HDBK-217F (25 )
DIMENSION 99*82*35mm (L*W*H)
PACKING  0.3Kg; 45pcs/14.5Kg/0.66CUFT
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives.

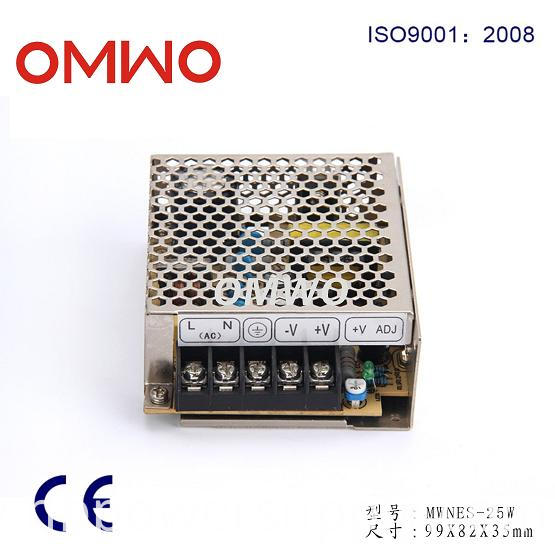

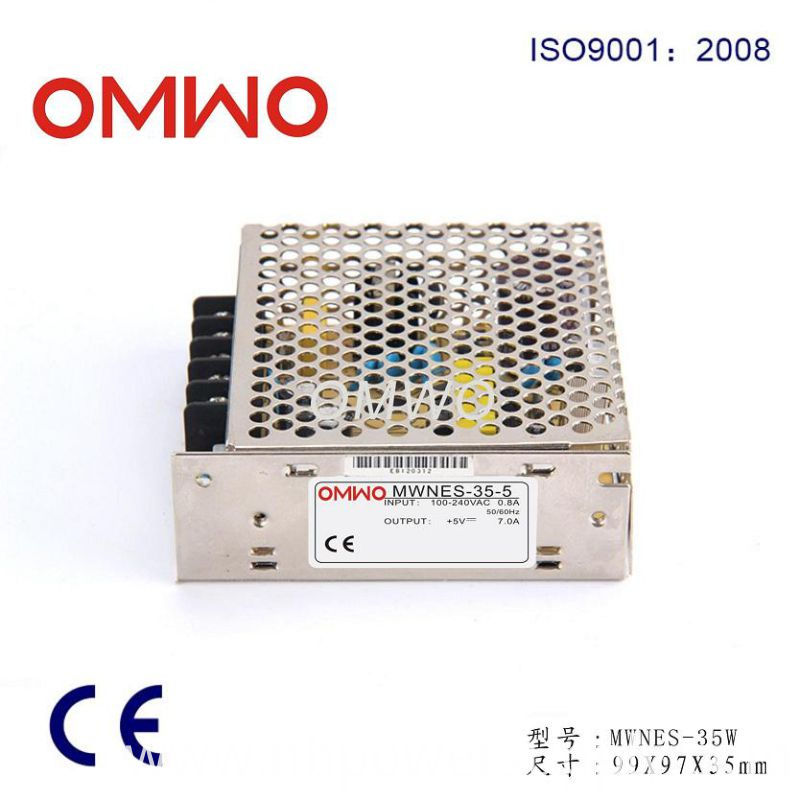

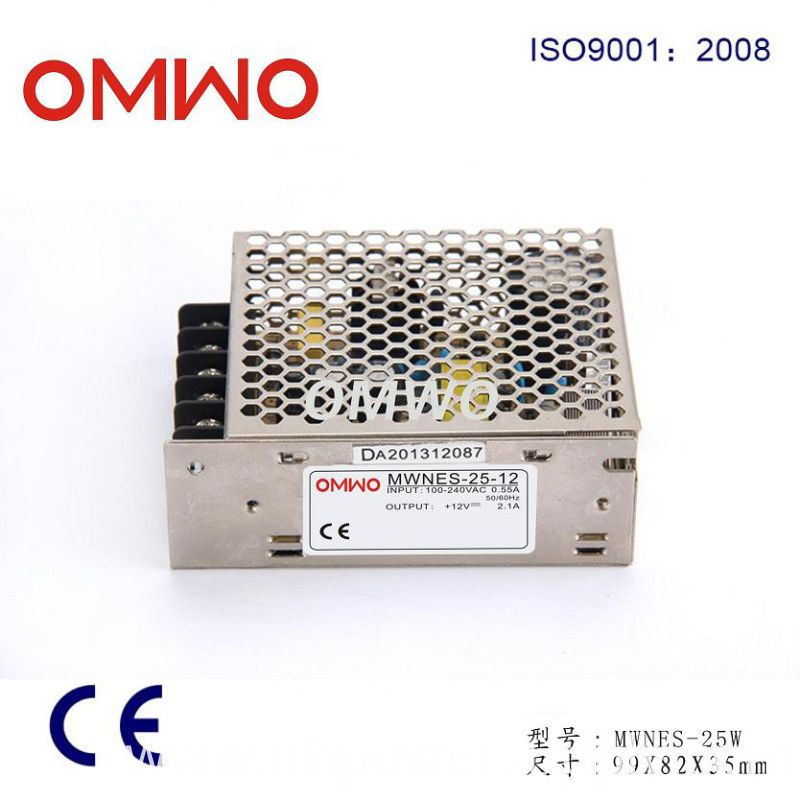

Wxe-50RS High Quality Switching Power SupplyWxe-50RS High Quality Switching Power SupplyWxe-50RS High Quality Switching Power SupplyWxe-50RS High Quality Switching Power SupplyWxe-50RS High Quality Switching Power SupplyWxe-50RS High Quality Switching Power Supply

Contact us if you need more details on Switching Power Supply. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Switch Power Supply、LED Switch Power Supply. If these products fail to match your need, please contact us and we would like to provide relevant information.
