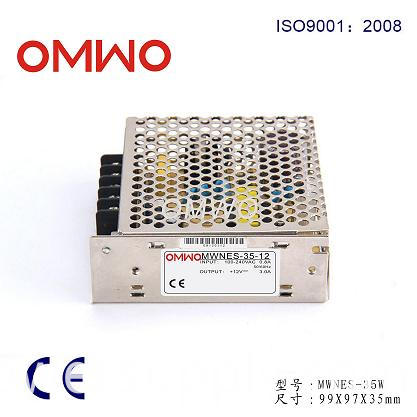

Nes-35-12 35W 15V 3A LED Strip Power Supply Transformer

Basic Info

Model No.:  MWNES-35-12

Product Description

Model NO.: MWNES-35-12 Warranty: >2 Years Input Voltage: 15V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang Packaging & Delivery
Packaging Details: Details packing information of power supply
Packing Detail:
1. 60 pieces per carton (according to your request)
2.Yellow Paper packaging Standard export carton. Each piece is packed by vacuum plastic bag into an box
Delivery Detail: Shipped in 7 days after payment
NES-35-15 35W 15V 3A LED strip power supply transformer   35W Single Output Switching Power Supply       NES-35 series Features: Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection 100% full load burn-in test 2 years warranty

SPECIFICATION



OUTPUT



Model

NES-35-5

NES-35-12

NES-35-15

NES-35-24

NES-35-48

DC Voltage

5V

12V

15V

24V

48V

Rated Current

7A

3A

2.4A

1.5A

0.8A

Current Range

0 ~ 7A

0 ~ 3A

0 ~ 2.4A

0 ~ 1.5A

0 ~ 0.8A

Rated Power

35W

36W

36W

36W

38.4W

Ripple & Noise

80mVp-p

120mVp-p

150mVp-p

200mVp-p

240mVp-p

Voltage Adj. Range

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

21.6 ~ 26.4V

43.2 ~ 52.8V

Voltage Tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup, Rise Time

500ms, 30ms/230VAC   1200ms, 30ms/115VAC at full load

Hold Up Time

50ms/230VAC   10ms/115VAC at full load





INPUT



Voltage Range

85 ~ 264VAC   120 ~ 370VDC

Frequency Range

47 ~ 63Hz

Efficiency

78%

81%

83%

85%

86%

AC Current

0.75A/115VAC   0.5 A/230VAC

Inrush Current

Cold Start 45A

Leakage Current

<2mA / 240VAC





PROTECTION



Over Load

110 ~ 150% rated output power



Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

5.75~6.75V

13.8~16.2V

17.25~20.25V

27.6~32.4V

55.2~64.8V



Protection type: Shut down o/p voltage, re-power on to recover





ENVIRONMENT



Working Temp.

-20 ~ +60ºC (Refer to "Derating Curve")

Working Humidity

20 ~ 90% RH non-condensing

Storage Temp., Humidity

-40 ~ +85ºC, 10 ~ 95% RH

Temp. Coefficient

±0.03%/ºC (0 ~ 45ºC)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes





SAFETY & EMC



Safety Standards

UL60950-1, CB(IEC60950-1),CCC GB4943 approved

Withstand Voltage

I/P-O/P:3KVAC   I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC / 70% RH

EMC Emission

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC Immunity

Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, EN55024, EN61000-6-1, light industry level, criteria A





Others



Dimension

99*97*36mm (L*W*H)

Weight

0.36Kg

Packing

45pcs/17.2Kg/0.93CUFT


Nes-35-12 35W 15V 3A LED Strip Power Supply TransformerNes-35-12 35W 15V 3A LED Strip Power Supply TransformerNes-35-12 35W 15V 3A LED Strip Power Supply TransformerNes-35-12 35W 15V 3A LED Strip Power Supply TransformerNes-35-12 35W 15V 3A LED Strip Power Supply TransformerNes-35-12 35W 15V 3A LED Strip Power Supply Transformer

Contact us if you need more details on Switching Power Supply. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Switch Power SupplyLED Switch Power Supply. If these products fail to match your need, please contact us and we would like to provide relevant information.
