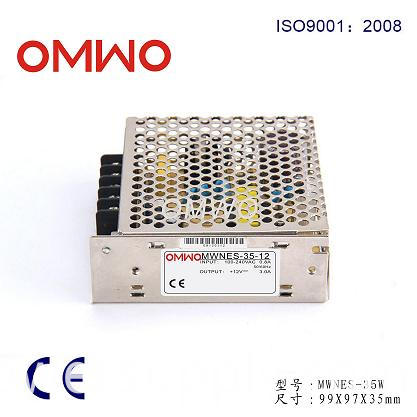

Nes-35-15 H3 LED High Switch Power Supply 12V 35W 15V

Basic Info

Model No.:  MWNES-35-2

Product Description

Model NO.: MWNES-35-2 Warranty: >2 Years Input Voltage: 15V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Transport Package: Standard Export Packing Origin: Zhejiang Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Specification: 159*98*38mm HS Code: 8504401990 Packaging & Delivery
Packaging Details: Details packing information of power supply
Packing Detail:
1. 60 pieces per carton (according to your request)
2.Yellow Paper packaging Standard export carton. Each piece is packed by vacuum plastic bag into an box
Delivery Detail: Shipped in 7 days after payment
NES-35-15 35W 15V 3A LED strip power supply transformer 35W Single Output Switching Power Supply       NES-35 series Features: Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Cooling by free air convection 100% full load burn-in test 2 years warranty

SPECIFICATION



OUTPUT



Model

NES-35-5

NES-35-12

NES-35-15

NES-35-24

NES-35-48

DC Voltage

5V

12V

15V

24V

48V

Rated Current

7A

3A

2.4A

1.5A

0.8A

Current Range

0 ~ 7A

0 ~ 3A

0 ~ 2.4A

0 ~ 1.5A

0 ~ 0.8A

Rated Power

35W

36W

36W

36W

38.4W

Ripple & Noise

80mVp-p

120mVp-p

150mVp-p

200mVp-p

240mVp-p

Voltage Adj. Range

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

21.6 ~ 26.4V

43.2 ~ 52.8V

Voltage Tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup, Rise Time

500ms, 30ms/230VAC   1200ms, 30ms/115VAC at full load

Hold Up Time

50ms/230VAC   10ms/115VAC at full load





INPUT



Voltage Range

85 ~ 264VAC   120 ~ 370VDC

Frequency Range

47 ~ 63Hz

Efficiency

78%

81%

83%

85%

86%

AC Current

0.75A/115VAC   0.5 A/230VAC

Inrush Current

Cold Start 45A

Leakage Current

<2mA / 240VAC





PROTECTION



Over Load

110 ~ 150% rated output power



Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

5.75~6.75V

13.8~16.2V

17.25~20.25V

27.6~32.4V

55.2~64.8V



Protection type: Shut down o/p voltage, re-power on to recover





ENVIRONMENT



Working Temp.

-20 ~ +60ºC (Refer to "Derating Curve")

Working Humidity

20 ~ 90% RH non-condensing

Storage Temp., Humidity

-40 ~ +85ºC, 10 ~ 95% RH

Temp. Coefficient

±0.03%/ºC (0 ~ 45ºC)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes





SAFETY & EMC



Safety Standards

UL60950-1, CB(IEC60950-1),CCC GB4943 approved

Withstand Voltage

I/P-O/P:3KVAC   I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC / 70% RH

EMC Emission

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC Immunity

Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, EN55024, EN61000-6-1, light industry level, criteria A





Others



Dimension

99*97*36mm (L*W*H)

Weight

0.36Kg

Packing

45pcs/17.2Kg/0.93CUFT
