Single Output Switching Power Supply UL Nes-200-36

Productivity:
50000/Month
Place of Origin:
Zhejiang
Supply Ability:
50000/Month
Certificate:
CE, UL, RoHS, ISO, CCC, CB, CSA
  • Mr. Catherine Zhou

Basic Info

Model No.:  MWNES-200-1

Product Description

Model NO.: MWNES-200-1 Warranty: >2 Years Input Voltage: 15V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang  Features :
·                  AC input range selectable by switch
·                  Protections: Short circuit / Overload / Over voltage / Over temperature
·                  Cooling by free air convection
·                  Withstand 300 vac surge input for 5 second
·                  Built-in constant current limiting circuit
·                  100% full load burn-in test
·                  LED indicator for power on
·                  Fixed switching frequency at 90KHz
·                  Low cost, high reliability
·                  2 years warranty

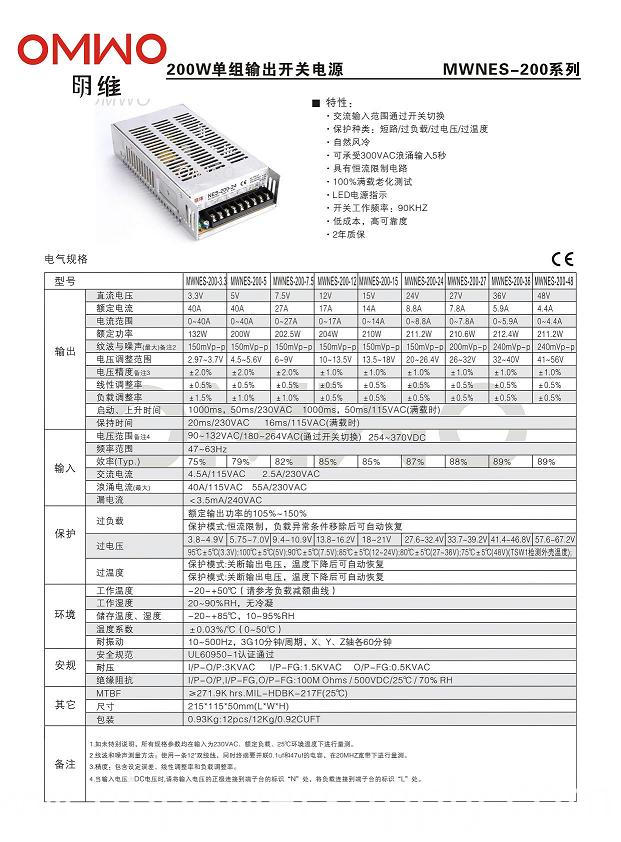

MODEL NES-200-36
OUTPUT DC VOLTAGE 36V
RATED CURRENT 5.9A
CURRENT RANGE 0~5.9A
RATED POWER 212.4W
RIPPLE & NOISE (max.) Note.2 240mVp-p
VOLTAGE ADJ. RANGE 32~ 40V
VOLTAGE TOLERANCE Note.3 ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 20ms/230VAC   16 ms /115VAC at full load
INPUT VOLTAGE RANGE   Note.4 90 ~ 132VAC/180~264VAC by switch        254~370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 89%
AC CURRENT (Typ.) 4.5A / 115VAC     2.5A / 230VAC
INRUSH CURRENT(Typ.) 40A/115VAC   55A / 230VAC
LEAKAGE CURRENT Less than 3.5mA / 240VAC
PROTECTION OVER LOAD 105 ~ 135% rated output power
Protection type: Constant current limiting, recovers
automatically after fault condition is removed
OVER VOLTAGE 41.4~ 46.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE 95°C±5°C (3.3V); 100°C±5°C(5V); 90°C±5°C(7.5V);
85°C ±5°C(12~24V);80°C ±5°C(27~36V)
75°C ±5°C(48V) (TSW1) Detect on case
Protection type : Shut down o/p voltage, recovers
automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -20 ~ +50°C (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85°C , 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/°C (0~50°C)
VIBRATION 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL60950-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC   I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others MTBF 271.9K hrs min. MIL-HDBK-217F (25°C )
DIMENSION 215*115*50mm (L*W*H)
PACKING 0.93Kg; 12pcs/12Kg/0.92CUFT
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated
load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted
pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Please contact positive pole of input voltage with mark "L" of terminal block,
connect negative pole of input voltage with mark "N" of terminal block, using DC voltage for input voltage.

Single Output Switching Power Supply UL Nes-200-36Single Output Switching Power Supply UL Nes-200-36Single Output Switching Power Supply UL Nes-200-36Single Output Switching Power Supply UL Nes-200-36Single Output Switching Power Supply UL Nes-200-36Single Output Switching Power Supply UL Nes-200-36
