Home > Products > Single Output Switching Power Supply > Single SMPS Switching Power Switch Mode Power Supply

Single SMPS Switching Power Switch Mode Power Supply

Productivity:
50000/Month
Place of Origin:
Zhejiang
Supply Ability:
50000/Month
Certificate:
CE, UL, RoHS, ISO, CCC, CB, CSA
  • Mr. Catherine Zhou

Basic Info

Model No.:  MWNES-75-1

Product Description

Model NO.: MWNES-75-1 Warranty: >2 Years Input Voltage: 15V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang Features:

        •universal AC input
        •Small volume,low weight,high efficiency
        •Protections:short circuit/over load/over voltage
        •cooling by free air convection
        •LED indicator for power on
        •100% full load burn-in test
        •2 Year warranty

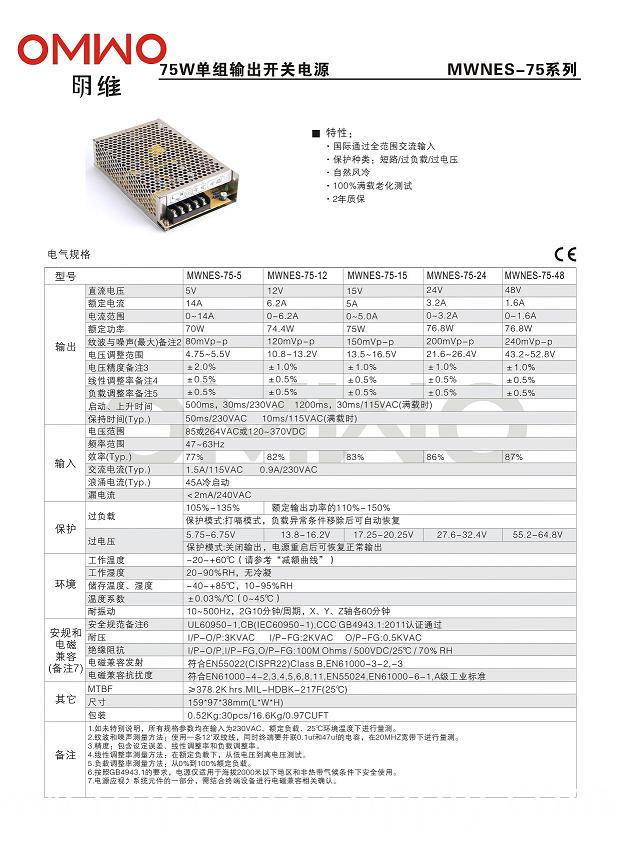

Model NES-75-5 NES-75-12 NES-75-15 NES-75-24
output DC voltage 5V 12V 15V 24V
Voltage tolerance ±2% ±1% ±1% ±1%
Rated current 15A 6.3A 5A 3.2A
Current range 0~10A 0~6.3A 0~5A 0~3.2A
Rated power 75W 75.6W 75W 76.8W
Ripple&noise 80mvp-p 100mvp-p 100mvp-p 120mvp-p
DCvoltage ADJ.range -9%~+10% ±10% ±10% ±10%
input Voltage range 90~264VAC,125~373VDC
frequency 47~63HZ
AC current 1.5A/115VAC,0.75A/230VAC
efficiency 79% 82% 82% 84%
Inrush current Cold start current  20A/115VAC,40A/230VAC
Leakage current < 3.5mA/240VAC
protection Over load Rated output power110%~150%  start over load protection
protection type:hiccup mode,auto-recovery after fault condition is removed
over voltage 6.8~8.2V 15.6~17.8V 18.6~20.8V 30.6~33.2V
protection type:hiccup mode,auto-recovery after fault condition is removed
environment Working temp,humidity -20ºC~+60ºC,20%~90%RH
Storagetemp,humidity -40ºC~+85ºC,10%~95%RH non-condensing
Withstand vibration 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety Withstand voltage I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard Safety standard Fit UL1012
EMC standard EN55022,CLASSA
Others Dimension 129*98*38mm (L*W*H)
Weight/packing 0.4kg/45pcs/19kg/0.034m³/1.2CUFT
note 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
Single SMPS Switching Power Switch Mode Power SupplySingle SMPS Switching Power Switch Mode Power SupplySingle SMPS Switching Power Switch Mode Power SupplySingle SMPS Switching Power Switch Mode Power SupplySingle SMPS Switching Power Switch Mode Power SupplySingle SMPS Switching Power Switch Mode Power Supply
