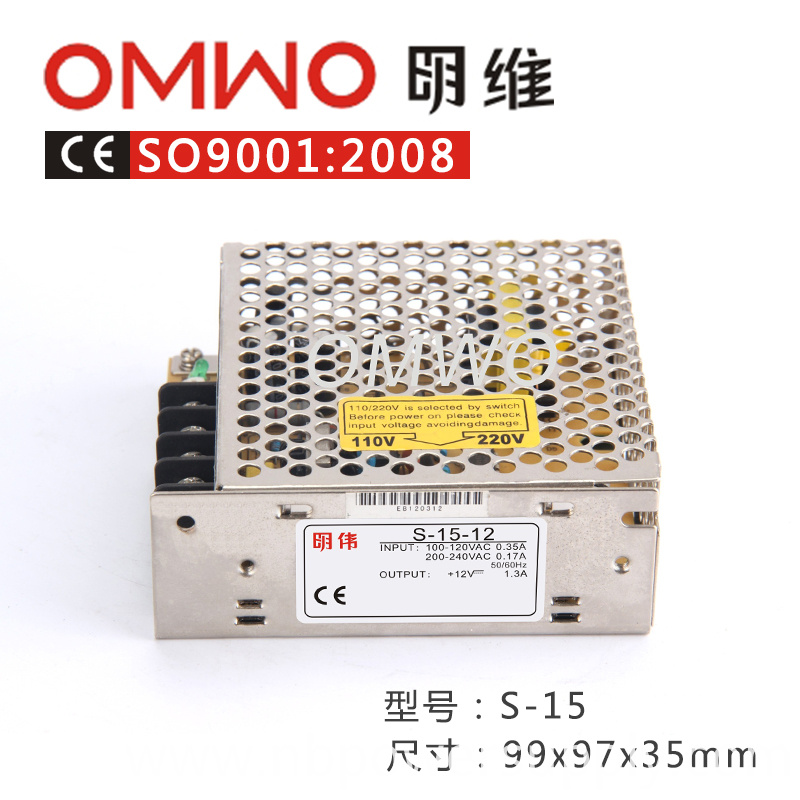

Model No.: WXE-15S-15
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

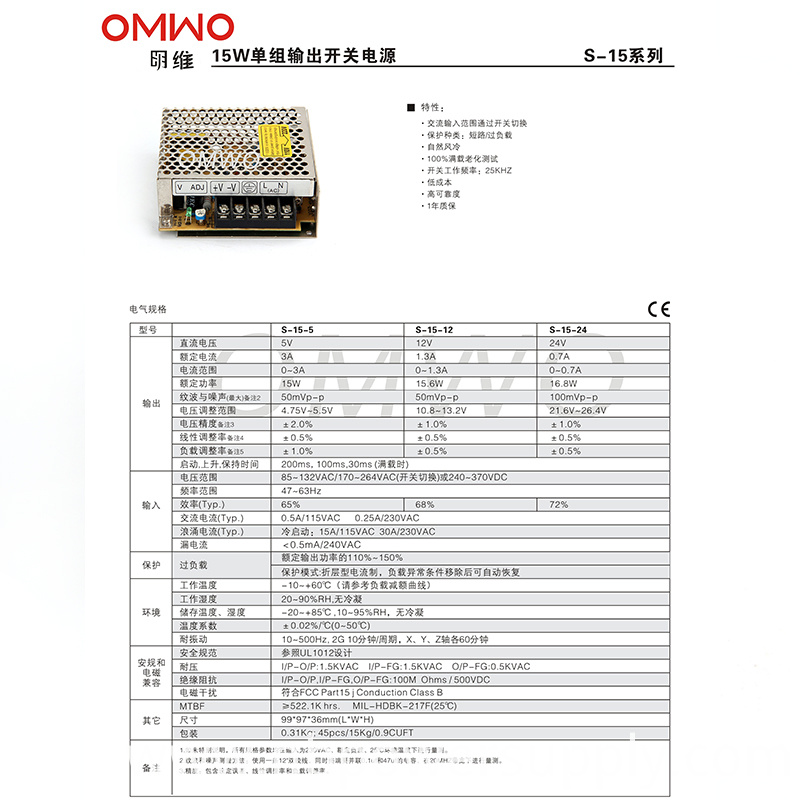

|Ripple and noise||50mVp-p||50mVp-p||50mVp-p||50mVp-p|
|Intput||AC voltage range||AC100~240V 47~63Hz ; 240~370VDC|
|AC Inrush current||Cold-start current 15A/115V 30A/230V|
|Leakage current||< 0.5mA/240VAC|
|Protection||Overload||105%~150% Type:pulsing hiccup shutdown Resete:auto recovery|
|Safety||Setup,rise,hold up time||200ms,100ms,30ms|
|Vibration||10~500Hz,2G 10min,/1 cycle|
|Withstand voltage||Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc|
|Isolation resistance||Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ|
|±0.03%/°C (0~50°C )|
|Environment||Temperature coeffi cient|
|Working temperature and humidity||-10°C ~+60°C,20%~90%RH|
|Store temperature and humidity||-20°C ~+85°C,10%~95%RH|
|Overall dimension||99×97×35mm 60PCS/CARTON|
|Certificate||CE EMC Authenticate||EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008|
|EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009|
Contact us if you need more details on Switching Power Supply. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Switch Power Supply、LED Switch Power Supply. If these products fail to match your need, please contact us and we would like to provide relevant information.
