Home > Products > Single Output Switching Power Supply > High Quality S-15-12 Single out 12V 15W Power Supply

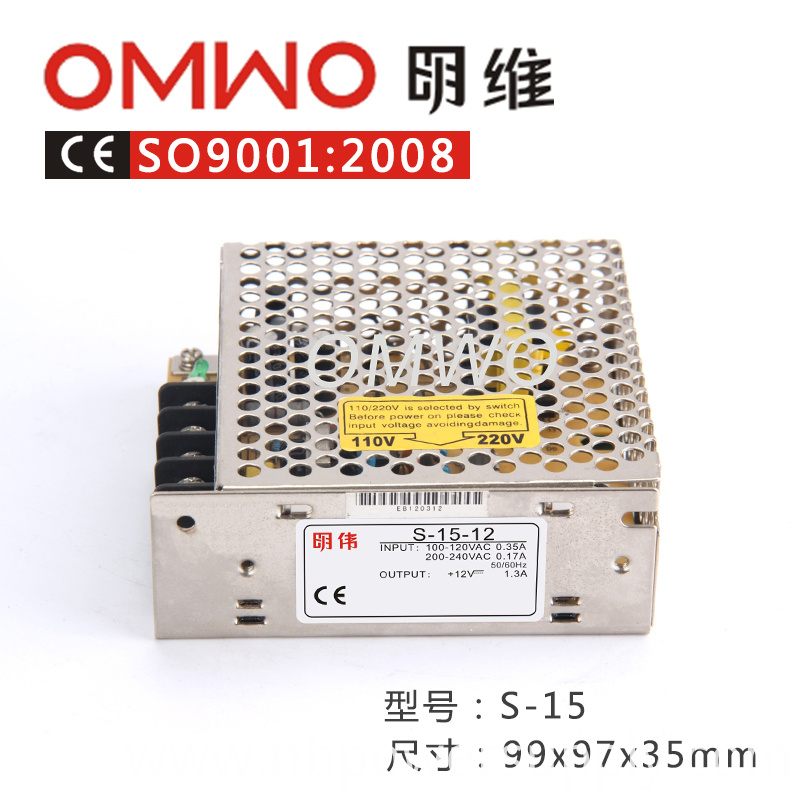

High Quality S-15-12 Single out 12V 15W Power Supply

Basic Info

Model No.:  S-15-12

Product Description

Model NO.: S-15-12 Warranty: >2 Years Input Voltage: 24V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang 1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY

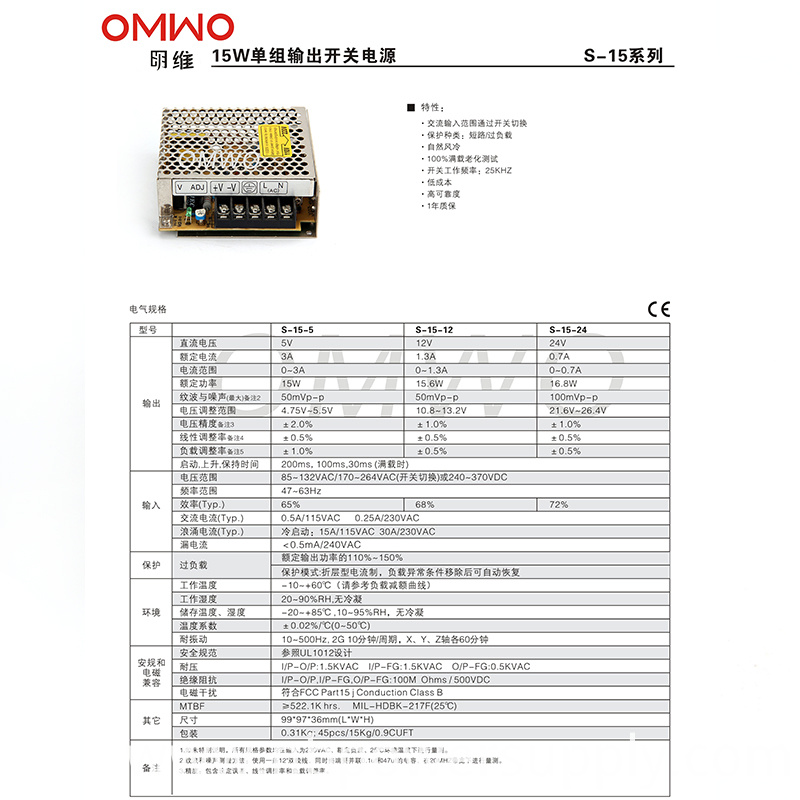

Specifications
  MODEL S-15-5 S-15-12 S-15-24 S-15-48
Output DC Voltage  5V 12V 24V 48V
Rated current  3A   1.3A 0.6A  0.3A
Current range 0-3A  0-1.3A  0-0.6A 0-0.3A
DC power    15W  15W 15W 15W
Voltage ADJ.range  +10,-5%  ±10% ±10% ±10%
Voltage tolerance   ±2% ±1% ±1% ±1%
Ripple and noise  50mVp-p 50mVp-p 50mVp-p 50mVp-p
Intet stability  ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±1% ±0.5% ±0.5% ±0.5%
Intput AC voltage range  AC100~240V 47~63Hz ; 240~370VDC
Current  0.5A/115V 0.25/230V
Effi ciency  78%  80%  82% 80%
AC Inrush current  Cold-start current 15A/115V 30A/230V
Leakage current  < 0.5mA/240VAC
Protection Overload  105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
   Over voltage  5.75~6.75   13.8~16.2V 27.6~32.4V 55.2~64.81
  200ms,100ms,30ms
Safety Setup,rise,hold up time 200ms,100ms,30ms
     Vibration  10~500Hz,2G 10min,/1 cycle
  Withstand voltage  Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
  Isolation resistance  Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
      ±0.03%/°C (0~50°C )
Environment Temperature coeffi cient
  Working temperature and humidity -10°C ~+60°C,20%~90%RH
  Store temperature and humidity -20°C ~+85°C,10%~95%RH
    Overall dimension  99×97×35mm   60PCS/CARTON
Other Weight  0.31Kg
Certificate CE EMC Authenticate  EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
   EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
High Quality S-15-12 Single out 12V 15W Power SupplyHigh Quality S-15-12 Single out 12V 15W Power SupplyHigh Quality S-15-12 Single out 12V 15W Power SupplyHigh Quality S-15-12 Single out 12V 15W Power Supply  High Quality S-15-12 Single out 12V 15W Power Supply
High Quality S-15-12 Single out 12V 15W Power Supply
