Home > Products > Single Output Switching Power Supply > 25W Switch Mode Power Supply 12V 2A SMPS S-25-12

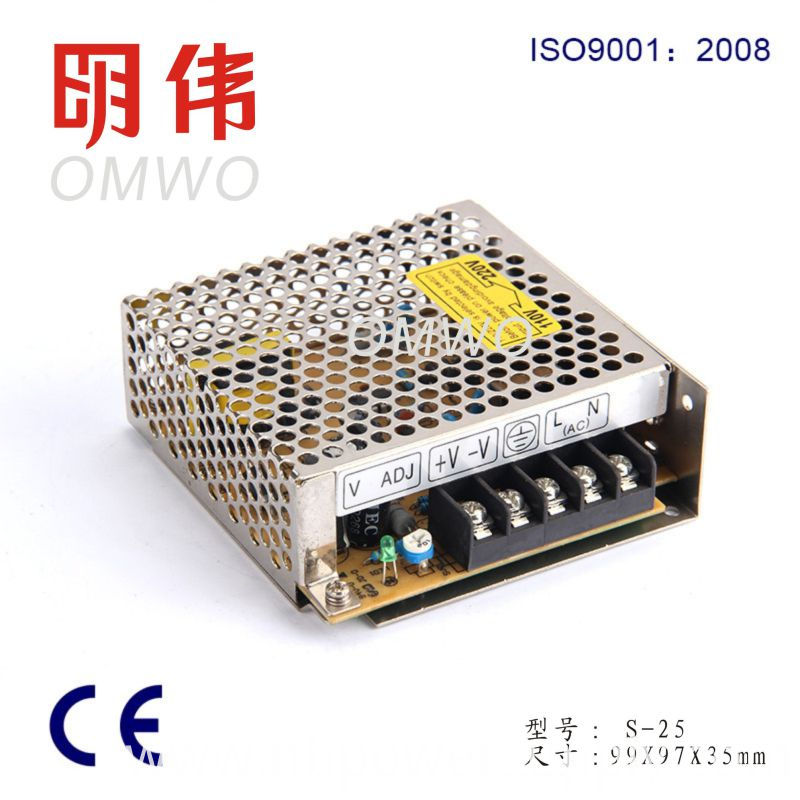

25W Switch Mode Power Supply 12V 2A SMPS S-25-12

Productivity:
50000/Month
Place of Origin:
Zhejiang
Supply Ability:
50000/Month
Certificate:
CE, UL, RoHS, ISO, CCC, CB, CSA
  • Mr. Catherine Zhou

Basic Info

Model No.:  S-25-12

Product Description

Model NO.: S-25-12 Warranty: >2 Years Input Voltage: 15V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang · 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit,over load
· 4. LED indicator for power on
· 5. 100% full lrad burn-in test
· 6. 2 years warranty
Product Description

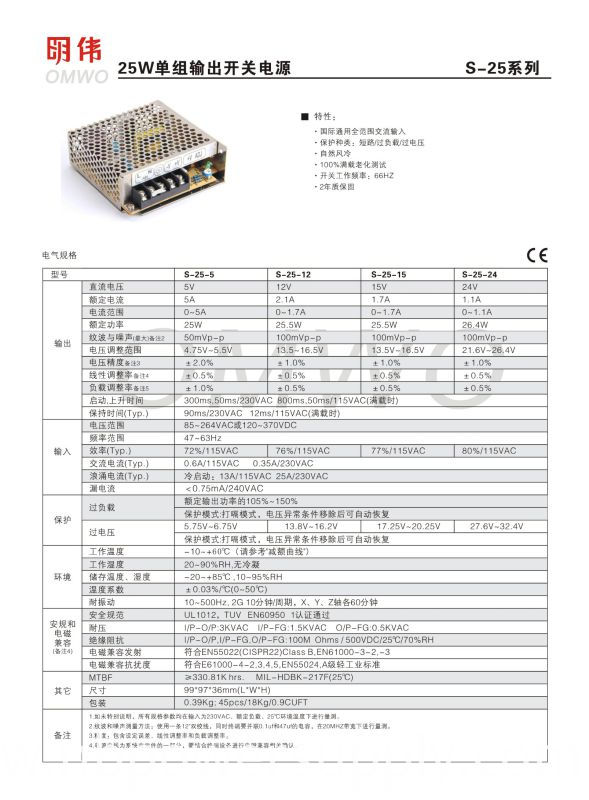

Model

S-25-5 S-25-12 S-25-15 S-25-24
Output DC output Voltage 5V 12V 15V 24V
Voltage tolerance ±1.0% ±1.0% ±1.0% ±1.0%
Rated Current 5A 2.1A 1.7A 1.1A
Related Power 25w 25w 25w 25w
Wave&Noise 100mVp-p 100mVp-p 100mVp-p 100mVp-p
Adjustable range for DC Voltage ±10% ±10% ±10% ±10%
Set up,rise,hold up time 200ms  100ms  30ms
Input Voltage Range 85 ~132VAC  170-264VAC  47-63HZ 240-370VDC
Input Current 0.5A/115VAC 0.25A/230VAC
Efficiency 68% 68% 68% 72%
AC inrush current Cold start current  15A/115V 30A /230VAC
Leakage current <0.5mA/240VAC
Protection Overload Related output power 105-150% start overload protection
Protection type: cutoff output, recovery after restart power
Over voltage 5.75V-6.75V 13.8V-16.2V 17.2V-20.2V 27.6V-32.4V
Hiccup mode,recovers automatically after fault condition
Environment Working temp humidity -10~+60°C 20%~90%RH
Stor temp, humidity -20~+85°C 20%~90%RH Non-condensing
Safety Withstand voltage I/P-O/P:1.5KVAC  1min
I/P-FG:1.5KVAC 1min
O/P-FG:0.5KVAC 1min
Standard Safety standard Fit UL1012
Refer Design refer to GB4943,UL60950,EN60950
EMC standard Design refer to GB9254,EN55022 Class A
Size size L99*W97*H35mm
Package 0.3kg, 60 pcs/18kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25  f ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
