Home > Products > Single Output Switching Power Supply > Input 220V AC/DC Switching Power Supply

Input 220V AC/DC Switching Power Supply

Productivity:
50000/Month
Place of Origin:
Zhejiang
Supply Ability:
50000/Month
Certificate:
CE, UL, RoHS, ISO, CCC, CB, CSA
  • Mr. Catherine Zhou

Basic Info

Model No.:  S-25-1

Product Description

Model NO.: S-25-1 Warranty: >2 Years Input Voltage: 24V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang 1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY

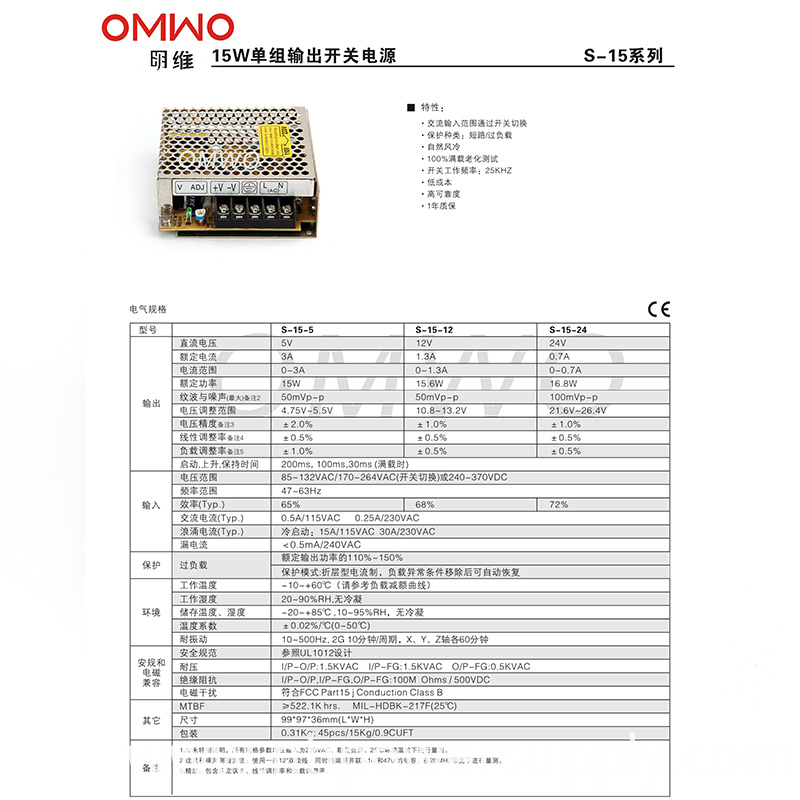

Specifications
  MODEL S-15-5 S-15-12 S-15-24 S-15-48
Output DC Voltage  5V 12V 24V 48V
Rated current  3A   1.3A 0.6A  0.3A
Current range 0-3A  0-1.3A  0-0.6A 0-0.3A
DC power    15W  15W 15W 15W
Voltage ADJ.range  +10,-5%  ±10% ±10% ±10%
Voltage tolerance   ±2% ±1% ±1% ±1%
Ripple and noise  50mVp-p 50mVp-p 50mVp-p 50mVp-p
Intet stability  ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±1% ±0.5% ±0.5% ±0.5%
Intput AC voltage range  AC100~240V 47~63Hz ; 240~370VDC
Current  0.5A/115V 0.25/230V
Effi ciency  78%  80%  82% 80%
AC Inrush current  Cold-start current 15A/115V 30A/230V
Leakage current  < 0.5mA/240VAC
Protection Overload  105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
   Over voltage  5.75~6.75   13.8~16.2V 27.6~32.4V 55.2~64.81
  200ms,100ms,30ms
Safety Setup,rise,hold up time 200ms,100ms,30ms
     Vibration  10~500Hz,2G 10min,/1 cycle
  Withstand voltage  Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
  Isolation resistance  Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
      ±0.03%/°C (0~50°C )
Environment Temperature coeffi cient
  Working temperature and humidity -10°C ~+60°C,20%~90%RH
  Store temperature and humidity -20°C ~+85°C,10%~95%RH
    Overall dimension  99×97×35mm   60PCS/CARTON
Other Weight  0.31Kg
Certificate CE EMC Authenticate  EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
   EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009

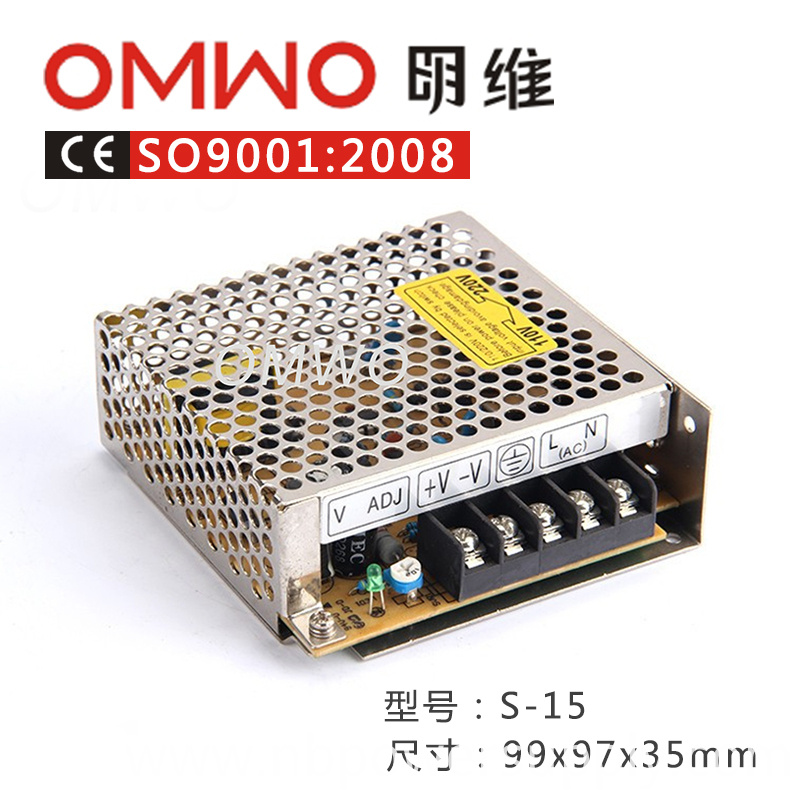

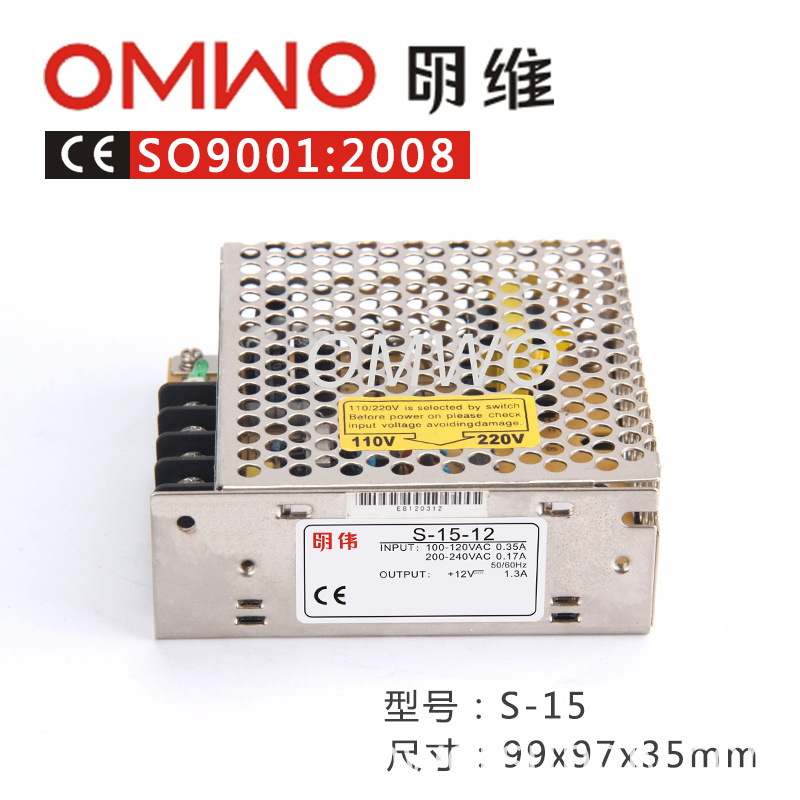

Input 220V AC/DC Switching Power SupplyInput 220V AC/DC Switching Power SupplyInput 220V AC/DC Switching Power SupplyInput 220V AC/DC Switching Power Supply  Input 220V AC/DC Switching Power Supply
Input 220V AC/DC Switching Power Supply

Contact us if you need more details on Switching Power Supply. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Switch Power Supply、LED Switch Power Supply. If these products fail to match your need, please contact us and we would like to provide relevant information.
