Home > Products > Single Output Switching Power Supply > 40W Single Output Switching Power Supply S-40

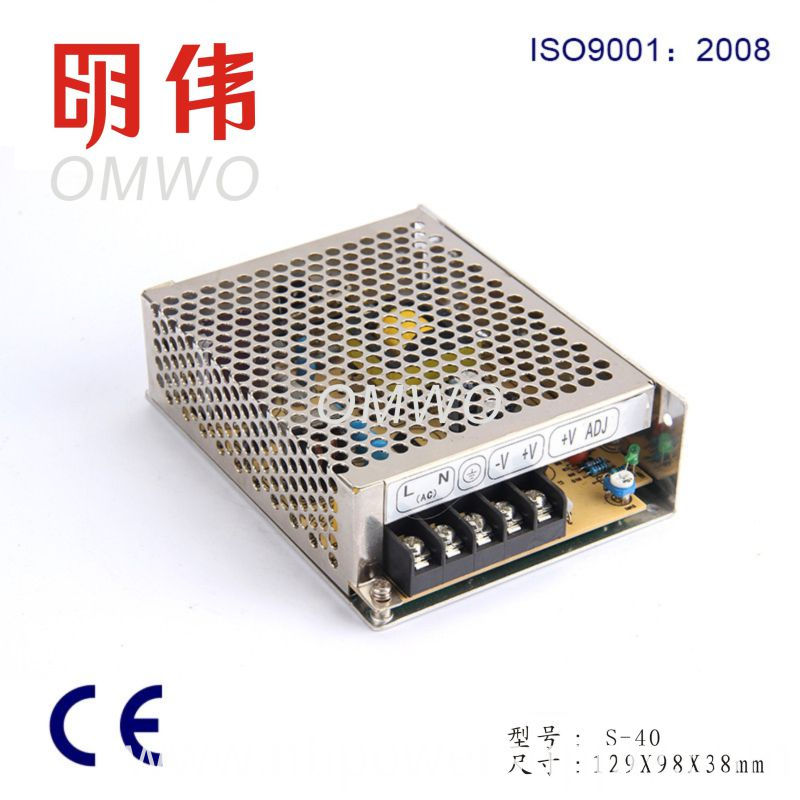

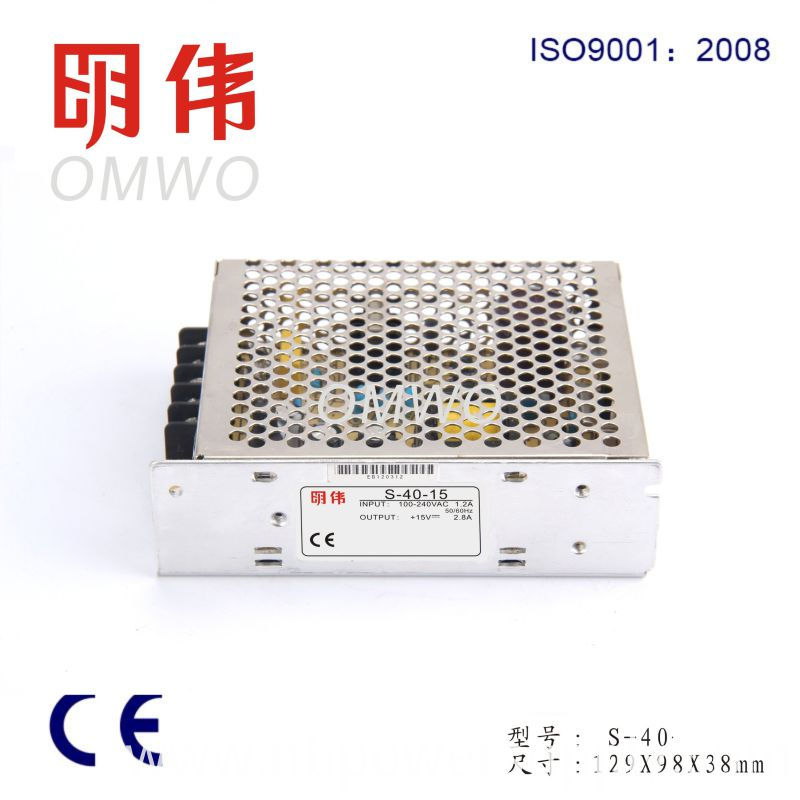

40W Single Output Switching Power Supply S-40

Productivity:
50000/Month
Place of Origin:
Zhejiang
Supply Ability:
50000/Month
Certificate:
CE, UL, RoHS, ISO, CCC, CB, CSA
  • Mr. Catherine Zhou

Basic Info

Model No.:  S-40-1

Product Description

Model NO.: S-40-1 Warranty: >2 Years Input Voltage: 15V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang     Specifications  1.Economical models with electrical equipments
 2.Output voltage:5V 12V 15V 24V
3.Efficency>70%
4.Output current:0-5A

1. Features
1.Low price and high reliability
2.105 output capacitor
3.AC input power suitable for the world
4.High efficiency and low operation temperature
5.Soft-start current can reduce the AC input impact effectively
6.With short-circuit and overload protection
7.Compact size, light weight
8.100% full-load burning test
9.Installed with EMI filter, minimum wave

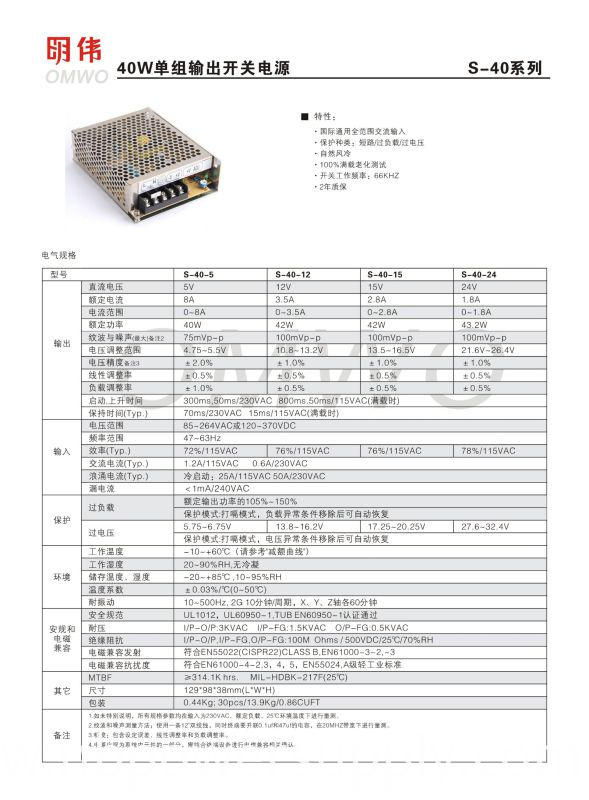

2.Specifications 2.Specifications
MODEL

SPECIFICATION
S-40-5 S-40-12 S-40-15 S-40-24
OUTPUT DC VOLTAGE 5V 12V 15V 24V
RATED CURRENT 8A 3.5A 2.8A 1.8A
OUTPUT CURRENT 0-8A 0-3.5A 0-2.8A 0-1.8A
RIPPLE & NOISE 75mVp-p 100mVp-p 100mVp-p 100mVp-p
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1% ±0.5% ±0.5% ±0.5%
RATED POWER 40W 42W 42W 43W
EFFICIENCY 70% 76% 78% 78%
VOLTAGE ADJ. RANGE ±10,-5% ±10% ±10% ±10%
INPUT VOLTAGE RANGE 85-132VAC/170-264VAC selected by switch
INPUT AC CURRENT 0.85A/115V 0.45A/230V
INRUSH CURRENT COLD START 18A/115V 36A/230V
LEAKAGE CURRENT <1mA/240VAC
OVER LOAD PROTECTION 105 ~ 150% rated output power, fold back current limiting, auto-recovery
TEMP. COEFFICIENT ±0.03%(050)
SETUP, RISE,  HOLD TIME 300ms,100ms,30ms
VIBRATION 10500Hz,2G 10min./1 cycle , period for 60min, each along X, Y, Z axes
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
WORKING TEMP. HUMIDITY -10+60,20%90%RH
STORAGE TEMP., HUMIDITY -20+85,10%95RH
DIMENSION 129*98*38mm
WEIGHT 0.4Kgs
SAFETY STANDARDS UL1012
EMC FCC PART15 J CONDUCTION CLASS B
 Note:1.The testing condition for the parameter above is:230VAC input, rated load,25°C 70%Rh,Humidity
          2.Error,include the setting error, line stability and load stability.(Note,5)
          3.Wave test:adopting"A12"double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting.
          4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 40W Single Output Switching Power Supply S-4040W Single Output Switching Power Supply S-4040W Single Output Switching Power Supply S-4040W Single Output Switching Power Supply S-4040W Single Output Switching Power Supply S-4040W Single Output Switching Power Supply S-40
