Home > Products > Single Output Switching Power Supply > High Quality AC DC Single Output 40W LED Driver Power Supply

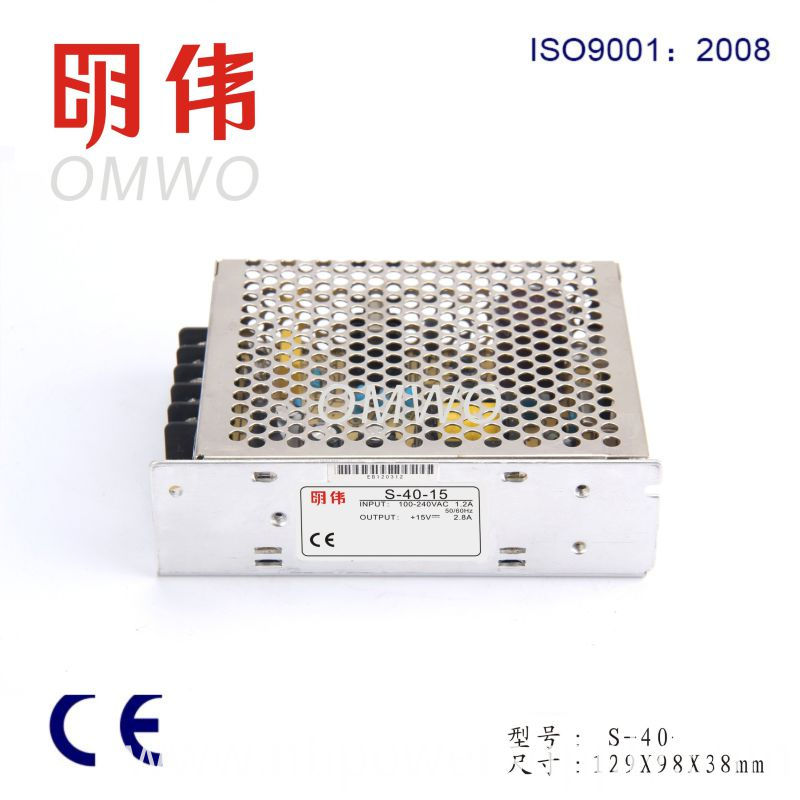

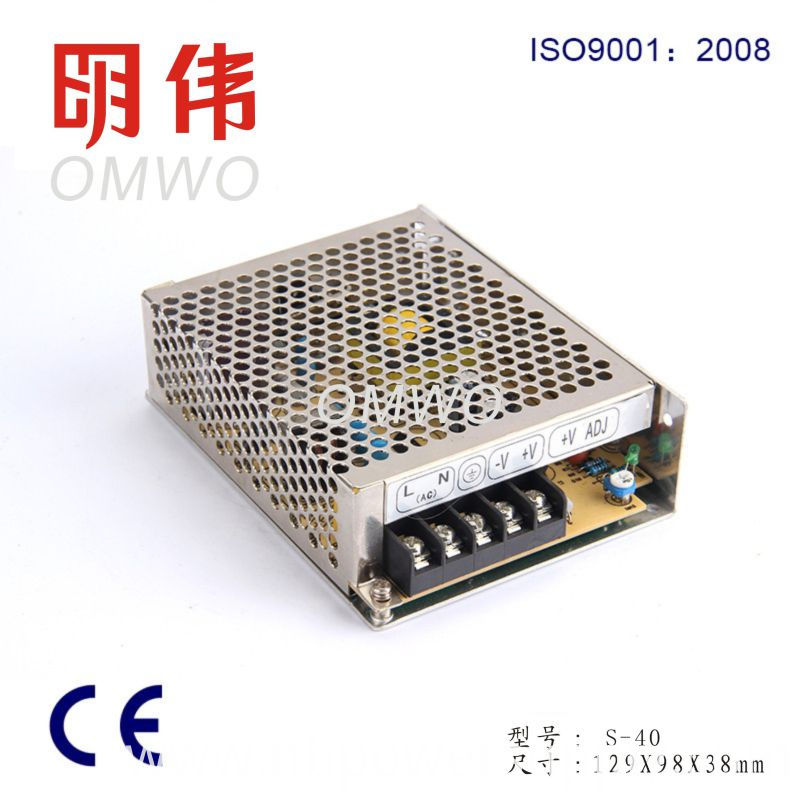

High Quality AC DC Single Output 40W LED Driver Power Supply

Productivity:
50000/Month
Place of Origin:
Zhejiang
Supply Ability:
50000/Month
Certificate:
CE, UL, RoHS, ISO, CCC, CB, CSA
  • Mr. Catherine Zhou

Basic Info

Model No.:  S-40-12

Product Description

Model NO.: S-40-12 Warranty: >2 Years Input Voltage: 15V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Trademark: OMWO Origin: Zhejiang Specifications
S-40-12
AC DC S-40-12
High quality/S-40-12
UL CE EMC S-40-12
2years warranty S-40-12 S-40-12 MEAN WELL/ *  Universal AC input / Full  range *  Protections: Short circuit / Overload / Over voltage *  Cooling by free air convection *  100% full load burn-in test *  Fixed switching frequency at 75KHz *  2 years warranty

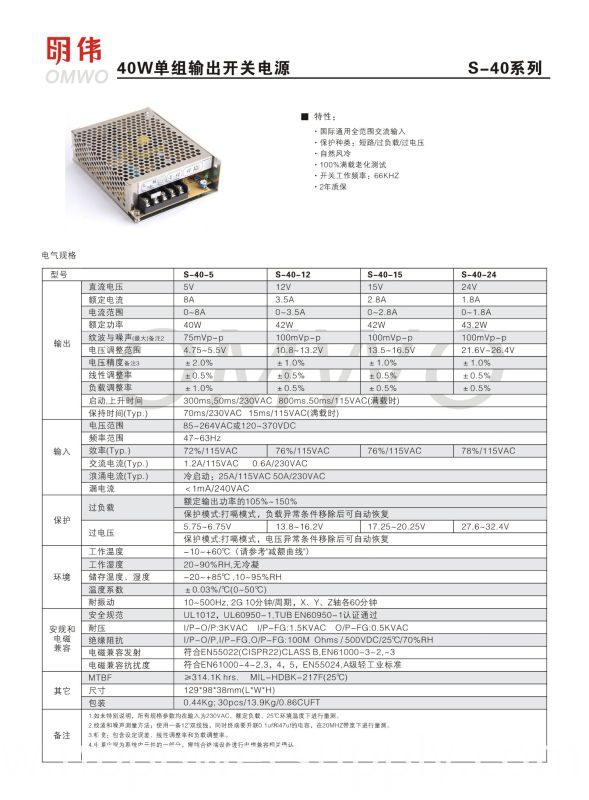

MODEL

S-40-5

S-40-12

S-40-15

S-40-24

OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

8A

3.5A

2.8A

1.8A

CURRENT RANGE

0 ~ 8A

0 ~ 3.5A

0 ~ 2.8A

0 ~ 1.8A

RATED POWER

40W

42W

42W

43W

RIPPLE & NOISE (max.)  Note.2

75mVp-p

100mVp-p

100mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

21.6 ~ 26.4V

VOLTAGE TOLERANCE   Note.3

2.0%

1.0%

1.0%

1.0%

LINE REGULATION

0.5%

0.5%

0.5%

0.5%

LOAD REGULATION

1.0%

0.5%

0.5%

0.5%

SETUP, RISE TIME

300ms, 50ms/230VAC    800ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

70ms/230VAC    15ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC   120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

72%/115VAC

76%/115VAC

76%/115VAC

78%/115VAC

AC CURRENT (Typ.)

1.2A/115VAC    0.6A/230VAC

INRUSH CURRENT (Typ.)

COLD START 25A/115VAC     50A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8 ~ 16.2V

17.25 ~ 20.25

27.6 ~ 32.4V

Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.

-10 ~ +60 (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85 , 10 ~ 95% RH

TEMP. COEFFICIENT

0.03%/  (0 ~ 50 )

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for  60min. each along X, Y, Z axes

SAFETY &EMC(Note 4)

SAFETY STANDARDS

UL1012, UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS

IMMUNITY

Compliance to EN61000-4-2,3,4,5; ENV50204, EN55024, light industry level,  criteria A

Others

MTBF

314.1K hrs min. MIL-HDBK-217F (25 )

DIMENSION

129*98*38mm (L*W*H)

PACKING

0.44Kg; 30pcs/13.9Kg/0.86CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25     of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets

EMC directives.
