Home > Products > Single Output Switching Power Supply > LED Driver 3A 24V 75W S-75 Switching Power Supply

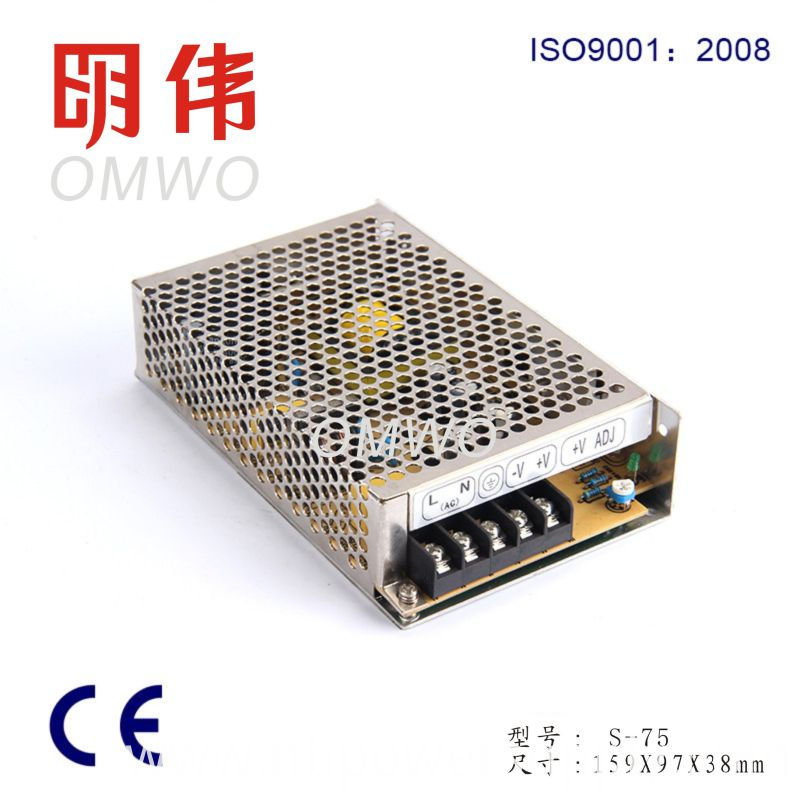

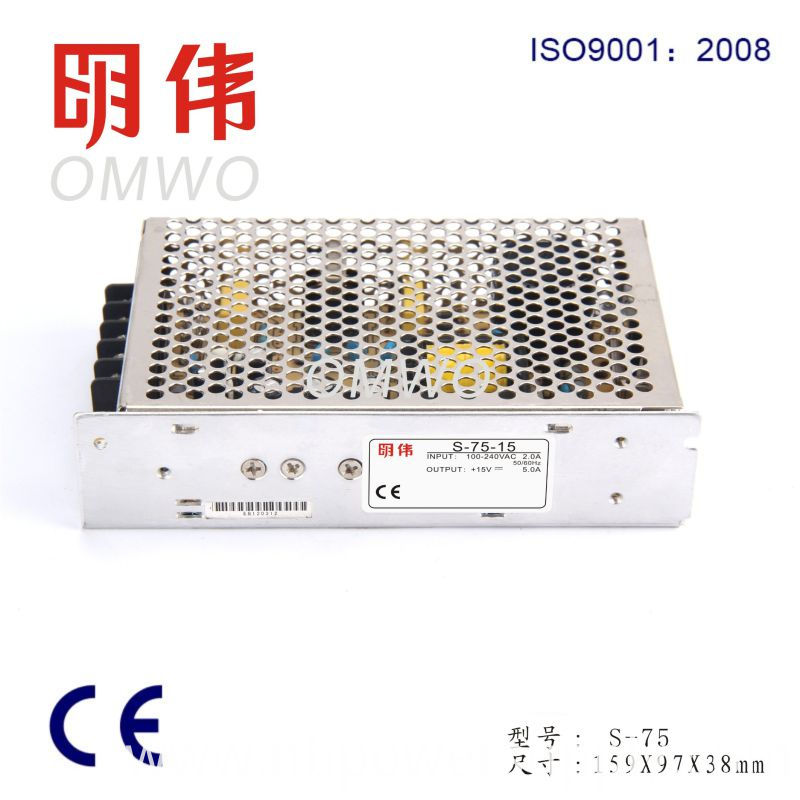

LED Driver 3A 24V 75W S-75 Switching Power Supply

Basic Info

Model No.:  S-75-48

Product Description

Model NO.: S-75-48 Warranty: >2 Years Input Voltage: 24V Starting Mode: Self-excited Switching Power Supply Power Supplying System: Terminal Power Distribution Equipment Modulation System: PFAW Brand: Omwo Trademark: OMWO Specification: 159*98*38mm HS Code: 8504401990 Output Type: Single Output Power: 1 - 50W Connection Mode: Series Switching Power Supply Voltage Regulating Mode: Frequency Modulation Type Energy Transmission: Two-way Transmission Certification: CE, UL, RoHS, ISO, CCC, CB, CSA Size: 159*98*38mm Transport Package: Standard Export Packing Origin: Zhejiang 12/24/48V 75W Single output High efficiency power supply Switching Power Supply
Product Description
1.CE RoHS approved
2.2 years warranty
3.high quality
4.79% efficiency
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d 2 years warrenty ,buy with confidence

General Specification :
Model S-75-12 S-75-15 S-75-24 S-75-48
DC output voltage 12V 15V 24V 48V
Rated output current 6A 5.0A 3A 1.5A
Output current range 0-6A 0-5A 0-3A 0-1.5A
Wave and noise 75mVp-p 100mVp-p 100mVp-p 100mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency 78% 79% 82% 83%
Adjustable range for DC voltage ±10% ±10% ±10% ±10%
AC input voltage range: 85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC
AC inrush current: Cold-start current 15A/115V 30A/230V
Overload protection: 105%~150% Type:plusing hiccup shutdown Reset:auto recovery
Setup rise hold-up time: 200ms,50ms,20ms
Withstand voltage:Input and output internal: 1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance: Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ
Working temperature 0~50°C
Safety standards: GB4943 UL60950 EN60950
EMC standards: EN55022 GB9254,class A
Overall dimension: 159*97*38mm
Weight: 0.56Kgs

LED Driver 3A 24V 75W S-75 Switching Power SupplyLED Driver 3A 24V 75W S-75 Switching Power SupplyLED Driver 3A 24V 75W S-75 Switching Power SupplyLED Driver 3A 24V 75W S-75 Switching Power SupplyLED Driver 3A 24V 75W S-75 Switching Power Supply11
