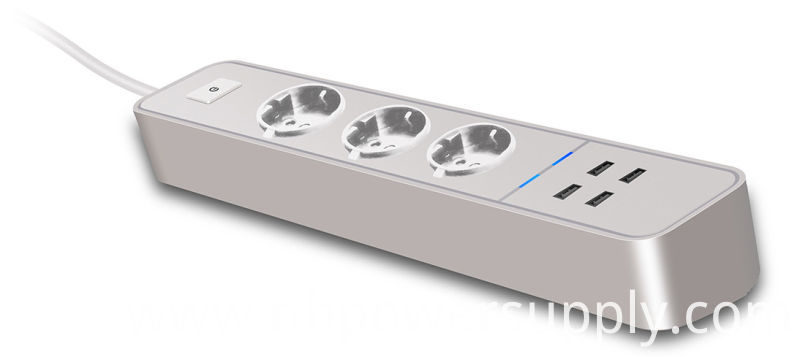

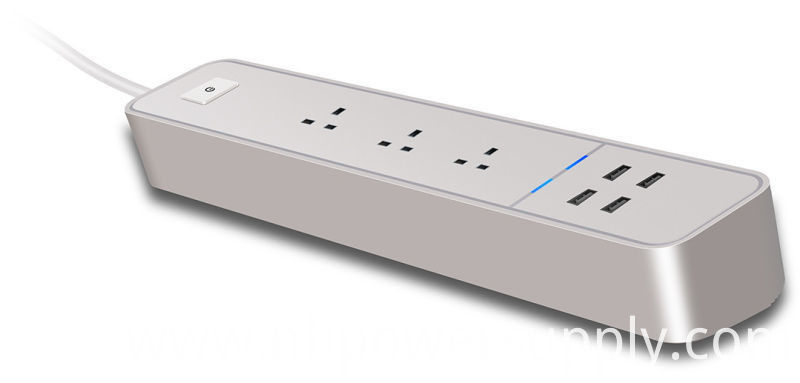

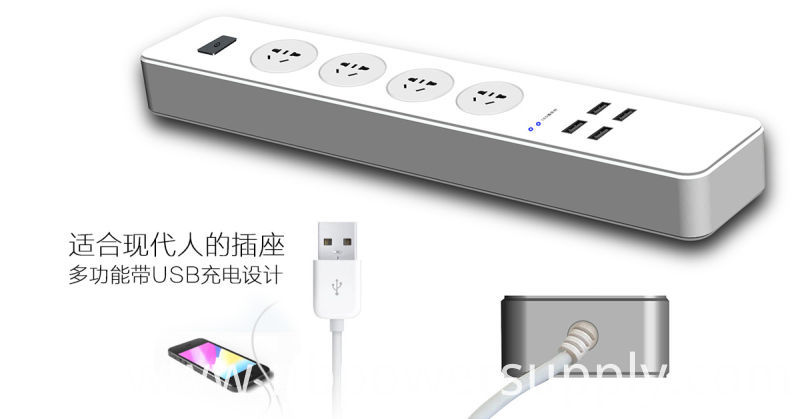

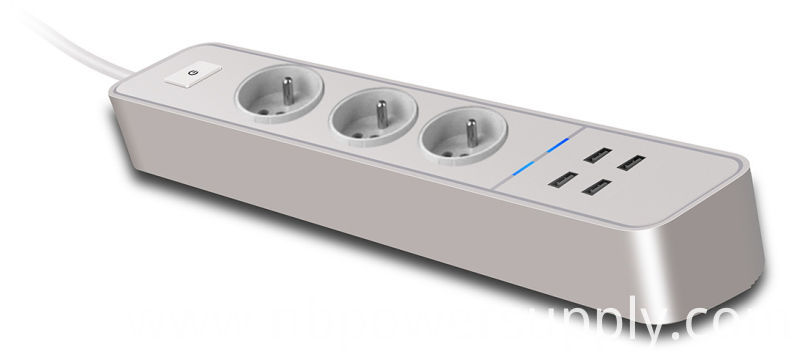

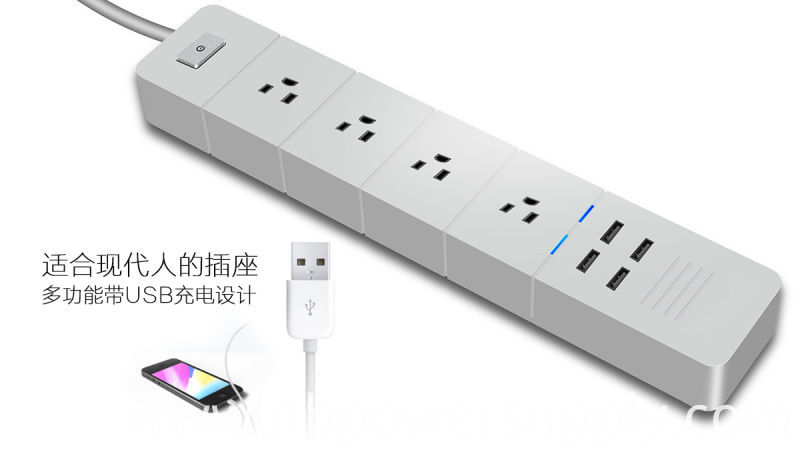

Electric Extension Socket Design with USB Power Strip

Basic Info

Model No.:  LS-2019

Product Description

Model NO.: LS-2019 Type: With Switch Hole-Digit: 6 Digits IP Rating: IP67 Certification: CE, RoHS, UL Condition: New Transport Package: Standard Export Packing Grounding: Standard Grounding Application: Commercial, Industrial, Hospital, Residential/General-Purpose Cable Length: 3 Meter Color: White Customized: Customized Trademark: OMWO Origin: Zhejiang, China New home electric extension socket design with usb power strip INPUT REQUIREMENTS  1,The range of input voltage is from 90Vac to 132Vac  2,The range of input frequency is from 57Hz to 63Hz  3,The maximum input current is 13A  4,Power waste at the empty load ≤0.2W @Vin115Vac   OUTPUT REQUIREMENTS  1,3 USB Outputs 5V/2.4A*1 5V/1A*2 (3USB MAX 3.1A)   5V±5%  2,AC Outlets ,1625Watts  3,Maximum peak to peak ripple & Noise 200mVp-p  4,Temperature coefficient: ±0.05%/ºC typical on all output  5,The usb extension socket efficiency (watts out / watts in) is higher than 82% typical while measuring at nominal line and rated load.   PROTECTION REQUIREMENT   Over - voltage protection for power strip        The home electric power strip shall be shutdown when output voltage reaches to its over - voltage protection trigger point 6V Max .   Short circuit protection        No damage to the home electric power strip shall be sustained when operating any output under any line condition, into a short circuit condition for an indefinite period of time.   The  usb extension socket shall be self - recovering when fault condition remove.  Over-current  protection         3 USB The Max point of over-current protection is 1.5 times of full-load current.The power supply would be self-recovering when over-current protection was removed.         The usb extension socket will be turned off for protection when the ampere is over 15A ,pls manual recover it RELIABILITY AND QUALITY CONTROL         [When the supply is operation within any of the limits of this specification the MTBF shall be at least 100,000 hours at 25ºC (MIL-STD-217F). ]         [The home electric power strip will be performed a minimum for  4 hours Burn-In at 40ºC±5ºCunder full load on all power supplies calculate MTBF. ]
Electric Extension Socket Design with USB Power Strip
Electric Extension Socket Design with USB Power Strip
Electric Extension Socket Design with USB Power Strip
Electric Extension Socket Design with USB Power Strip
Electric Extension Socket Design with USB Power Strip
Electric Extension Socket Design with USB Power Strip

Jack Description: EU regulation hole x3,4 a USB charging port
(total current 4.2A, 2.4A single port to support fast charge), charging protocol support BC1.2(Intelligent charging)
Power cord length:1.8m Switch Type: Total control switch
Power cord:VDE
Control method: A control four
Socket Number:4 insert bits
Flammability standards: 750 ºC high impedance internal combustion housing

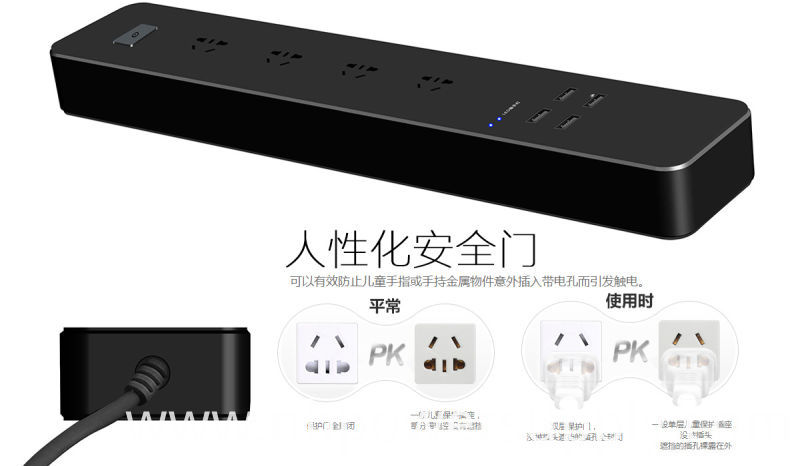

Safety performance:3 using a customized set of international jacks with protective door and 750 ºC
high impedance internal combustion housing
Product Features:USB module outputs a single USB: 5V-2.1A (TYP) 4 USB: 5V-4A (TYP)
Operating temperature:-10ºC- +40ºC  Special Features: Non-slip mat
Storage temperature: -20ºC- +50ºC Scope: Household and similar purposes
Can choose Colour:Black White

Contact us if you need more details on Extension Socket. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Power Strip、Electrical Power Socket. If these products fail to match your need, please contact us and we would like to provide relevant information.
