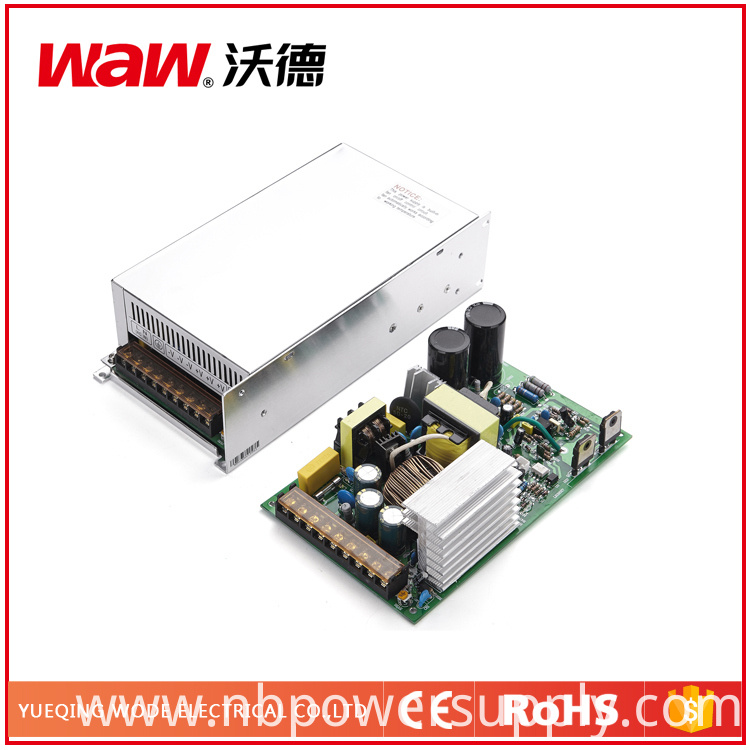

12V42A AC to DC PSU S-500 Power Supply 12V 500W

Basic Info

Model No.:  S-500-12

Product Description

  • Model NO.: S-500-12
  • Warranty: Lifetime Warranty
  • Input Voltage: 110V/220V
  • Starting Mode: Self-excited Switching Power Supply
  • Power Supplying System: Terminal Power Distribution Equipment
  • Modulation System: PWM
  • Brand: Waw
  • Transport Package: Carton
  • Origin: China
  • Output Type: Single
  • Output Power: 401 - 500W
  • Connection Mode: Series Switching Power Supply
  • Voltage Regulating Mode: Width Modulation Type
  • Energy Transmission: One-way Transmission
  • Certification: CE, RoHS
  • Trademark: waw
  • Specification: 241*123*65MM
  • HS Code: 8504401400

AC to DC PSU S-500 power supply 12V 500w



Product Description

Features



1. High Efficiency and good price

2. Built-in EMI filter

3.100% full load burn-in test

4. Low o

5. Protection: Over load/Over voltage/Short circuit

6. LIFETIME WARRANTY



Specifications

Model  Specification S-500-12 S-500-15 S-500-24 S-500-48
DC  voltage 12 15V 24V 48V
Rated output current 41.5A 33A 20.8A 10.5A
Output current range 0~41.5A 0-33A 0-20.8A 0-10.5A
DC power 500W 495W 500W 504W
Voltage adj.range ±10% ±10% ±10% ±10%
Voltage tolerance   ±1% ±1% ±1% ±1%
Ripple and noise 240mVp-p 240mVp-p 240mVp-p 300mVp-p
Intet stability ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±0.1% ±0.5% ±0.5% ±0.5%
AC voltage range 170~264VAC 47~63Hz
Current  0.95A/100~240VAC
Efficiency 79% 81% 82% 84%
AC Inrush current 18A/115V 36A/230V
Leakage current <3.5mA/240VAC
Overload 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over-voltage 115%~135%
5.75-6.75V 13.8-16.2V 27.6-32.4V 55.2-64.81V
High temperature   ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output(5~15V)
Setup rise hold up time 200ms,100ms,20ms
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
Isolation resistance Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms
Temperature coeffi cient  ±0.03%/°C (0~50°C )
Working temperature and humidity -10°C~+60°C,20~90%RH
Store temperature and humidity -20°C~+85°C,10~95%RH
Overall dimension 241*123*65mm
Weight 1.4Kg
CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
CE LVD Authenticate EN61347-1:2008T A1:2001 EN61347-2-13:2006
EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
