25W 5V 5A Switching Power Supply with Short Circuit Protection

Basic Info

Model No.:  S-25-5

Product Description

  • Model NO.: S-25-5
  • Warranty: Lifetime Warranty
  • Input Voltage: 110V/220V
  • Starting Mode: Self-excited Switching Power Supply
  • Power Supplying System: Terminal Power Distribution Equipment
  • Modulation System: PWM
  • Brand: Waw
  • Case Material: Metal Aluminium
  • Trademark: waw
  • Specification: 99*97*35MM
  • HS Code: 8504401400
  • Output Type: Single
  • Output Power: 1 - 50W
  • Connection Mode: Series Switching Power Supply
  • Voltage Regulating Mode: Width Modulation Type
  • Energy Transmission: One-way Transmission
  • Certification: CE, RoHS
  • Weight: 0.32kg
  • Packing: White Box,Brown Box
  • Transport Package: Carton
  • Origin: China

SMPS 25W 5V 5A switching power supply with short circuit protection



Product Description

Features



1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY

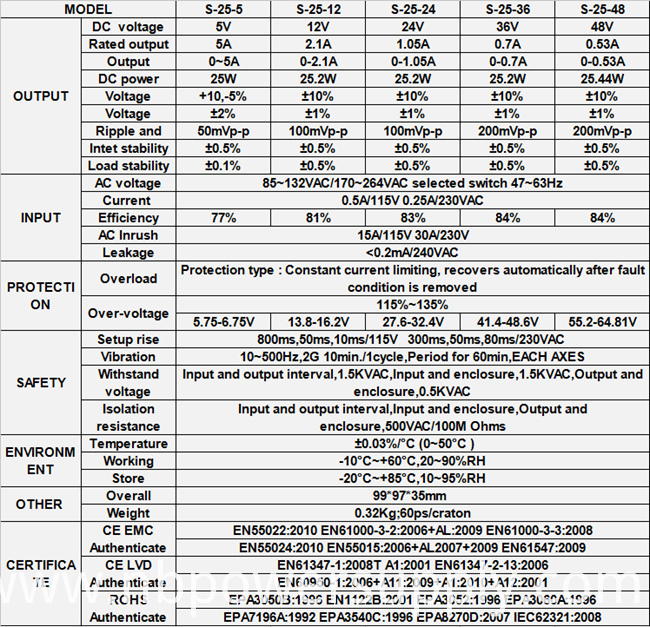

Specifications

25W 5V 5A Switching Power Supply with Short Circuit Protection
25W 5V 5A Switching Power Supply with Short Circuit Protection
25W 5V 5A Switching Power Supply with Short Circuit Protection
